Note: This article is discontinued.
You can find the current article here: 1187638 / Clamp clip 2056 F-foot, 1-fold, plastic pressure sleeve, FT
Clamp clip, single, FT plastic pressure trough
Item no. 1169467 | EAN 4012195070993
- Product description
-
Product descriptionSuitable for flat, bracket and U irons of 4–12 mm material thickness.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
-
- Technical data
-
Technical data

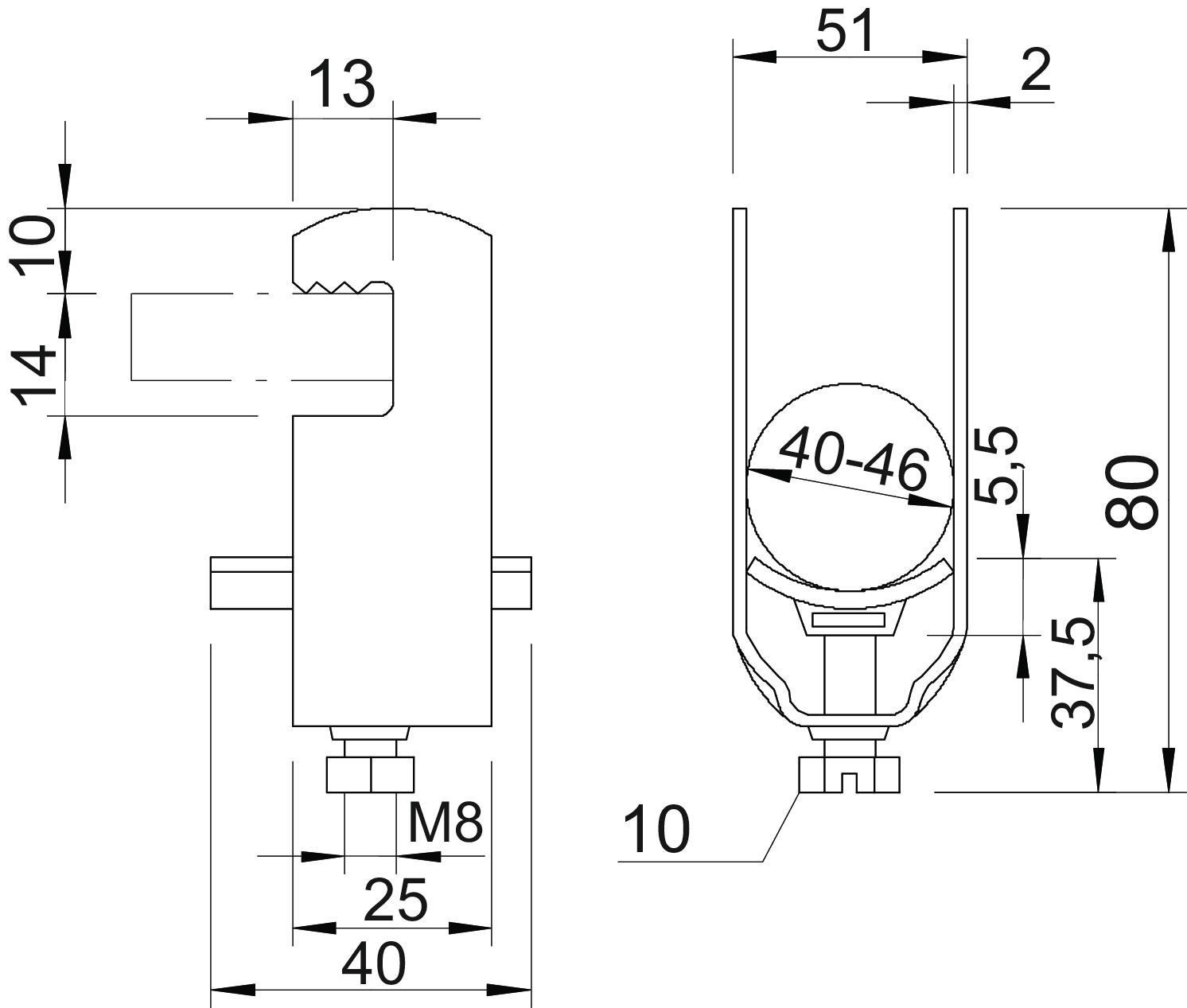

Clamping range D, max. 46 mm Clamping range D, min. 40 mm CO2 Footprint (GWP) Cradle-to-Gate 0,15 kg CO₂e / 1 Piece Dimension 40-46mm Dimension A 25 mm Dimension B 51 mm Dimension C 40 mm Dimension E 13 mm Dimension G (mm) M8 Dimension H 80 mm Dimension L 37,5 mm Dimension t 2 mm Dimension x 5,5 mm for 1 cable H 80 mm for 1 cable L 37,5 for 2 cable H 128 mm for 2 cable L 44,5 mm for 3 cable H 177 mm for 3 cable L 56,5 mm For pipe diameter, max. 40 mm For pipe diameter, min. 40 mm Halogen-free yes Impact-resistant no Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 5 Nm Mounting type Flat profile Number of cables/pipes 1 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough no With plastic trough yes - All types
-
All types
- Downloads
-
Data sheet 2056F 46 FT / 1169467 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2056F 46 FT / 1169467 , 0.10MB , pdfREACH Declaration of conformity 2056F 46 FT / 1169467 , 0.12MB , pdfRoHS Declaration of conformity 2056F 46 FT / 1169467 , 0.12MB , pdf
