Note: This article is discontinued. You can find the current article here: 1187620 / Clamp clip 2056 F-foot, 1-fold, plastic pressure sleeve, FT

Clamp clip, single, FT plastic pressure trough 22 | 28 | 3

Clamp clip, single, FT plastic pressure trough

Item no. 1169289 | EAN 4012195070818

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for flat, bracket and U irons of 4–12 mm material thickness.
Clip and bolt made of hot-dip galvanised steel.
Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.

Technical data

Technical data

Clamping range D, max.	28 mm
Clamping range D, min.	22 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,1199 kg CO₂e / 1 Piece

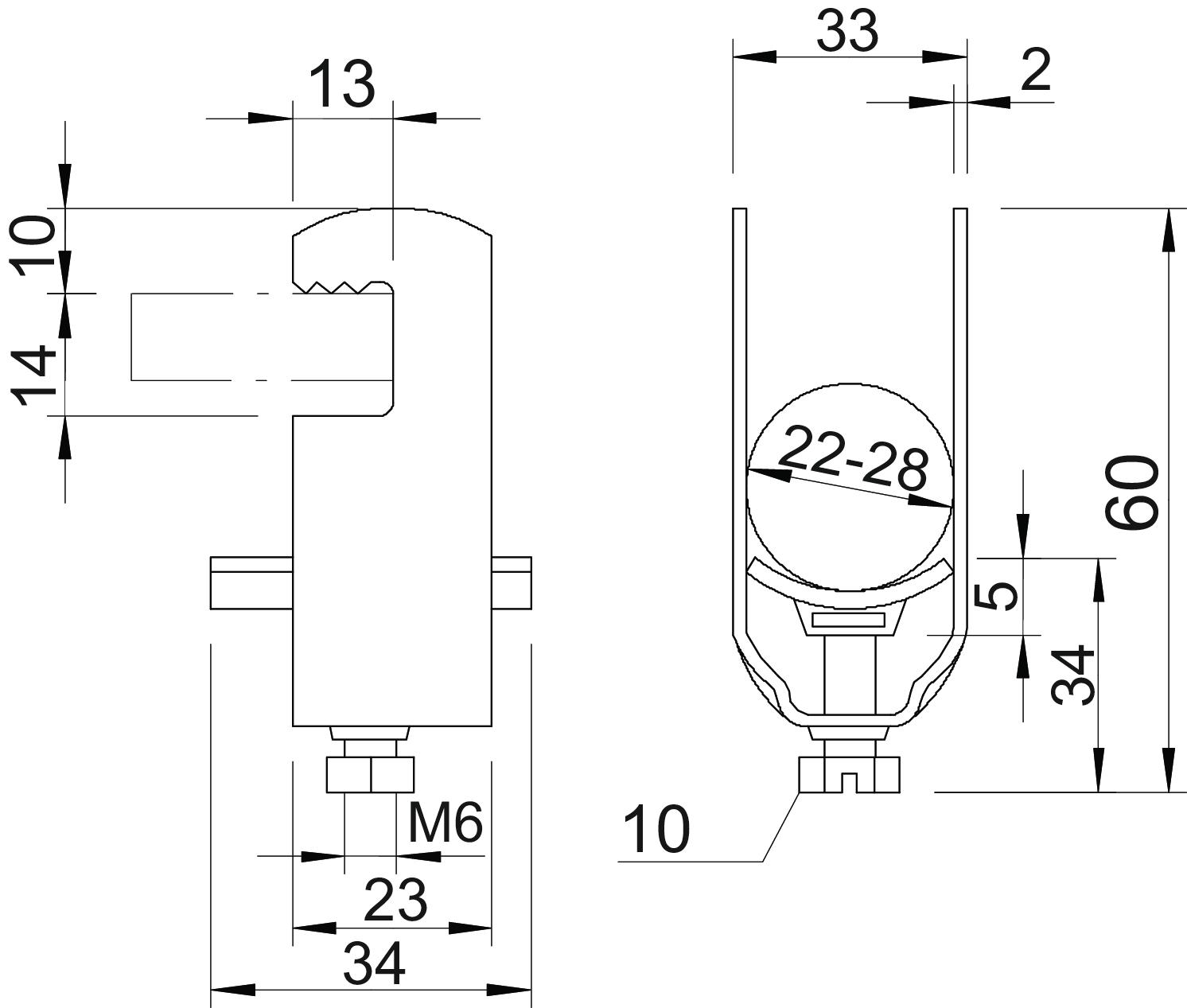

Dimension	22-28mm
Dimension A	23 mm
Dimension B	33 mm
Dimension C	34 mm
Dimension E	13 mm
Dimension G (mm)	M6
Dimension H	60 mm
Dimension L	34 mm
Dimension t	2 mm
Dimension x	5 mm
for 1 cable H	60 mm
for 1 cable L	34
for 2 cable H	90 mm
for 2 cable L	47 mm
for 3 cable H	120 mm

for 3 cable L	47 mm
For pipe diameter, max.	25 mm
For pipe diameter, min.	25 mm
Halogen-free	yes
Impact-resistant	no
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	3 Nm
Mounting type	Flat profile
Number of cables/pipes	1
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056F 12 FT	8 mm	12 mm	3 Nm	1169122	piece	100 piece
2056F 16 FT	12 mm	16 mm	3 Nm	1169165	piece	100 piece
2056F 22 FT	16 mm	22 mm	3 Nm	1169211	piece	100 piece
2056F 28 FT	22 mm	28 mm	3 Nm	1169289	piece	100 piece
2056F 34 FT	28 mm	34 mm	5 Nm	1169343	piece	100 piece
2056F 40 FT	34 mm	40 mm	5 Nm	1169408	piece	100 piece
2056F 46 FT	40 mm	46 mm	5 Nm	1169467	piece	100 piece
2056F 52 FT	46 mm	52 mm	5 Nm	1169521	piece	100 piece
2056F 58 FT	52 mm	58 mm	5 Nm	1169580	piece	50 piece
2056F 64 FT	58 mm	64 mm	5 Nm	1169645	piece	50 piece
