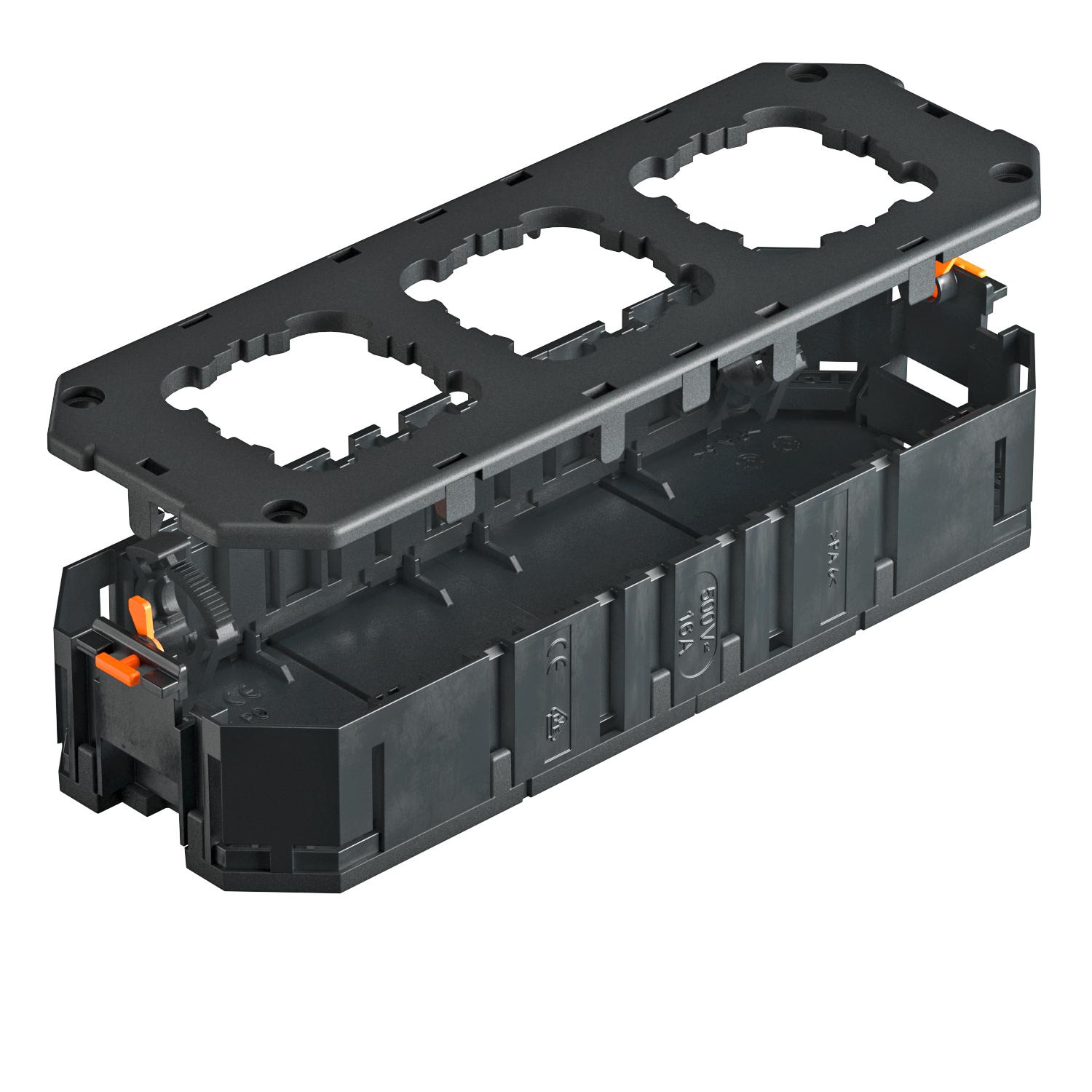

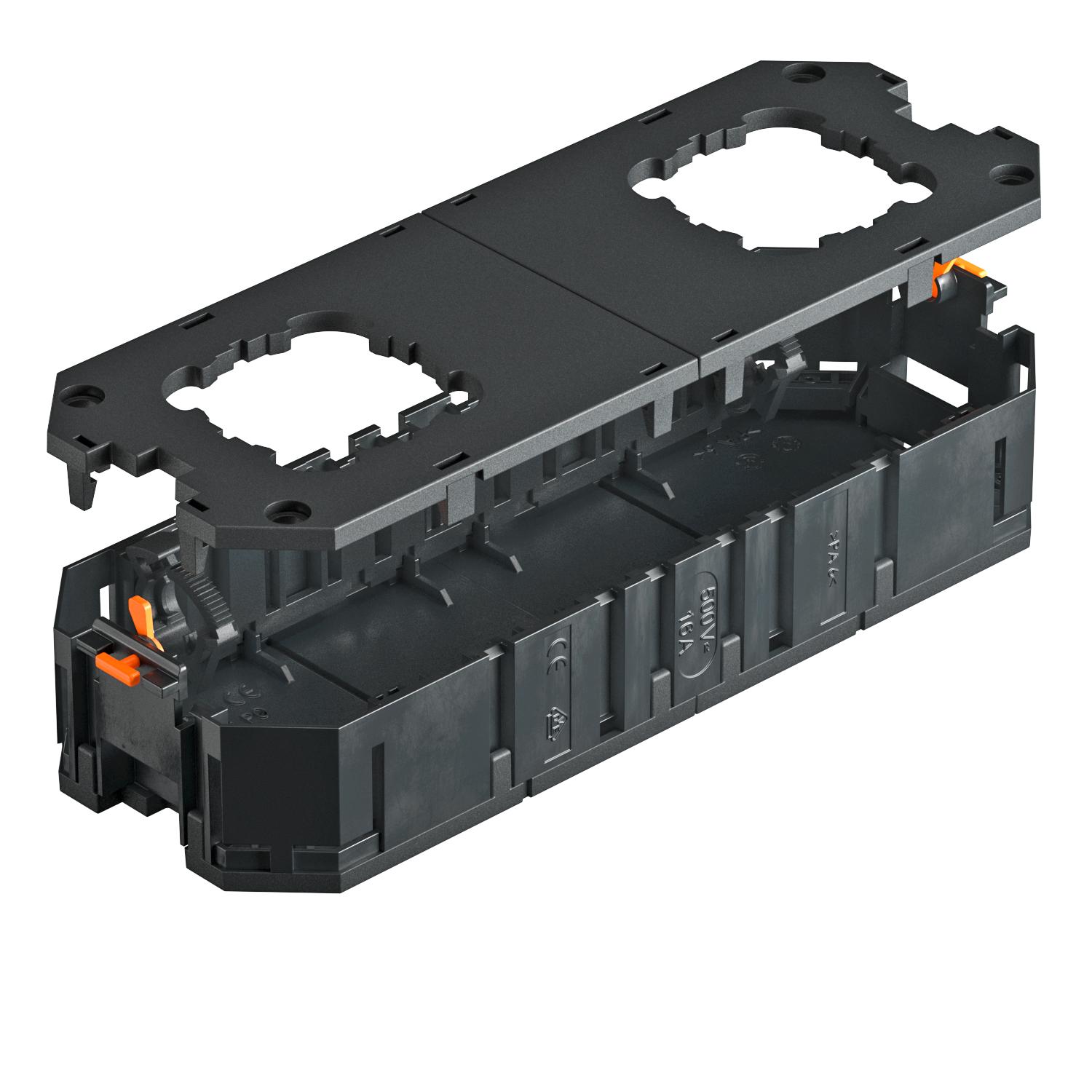

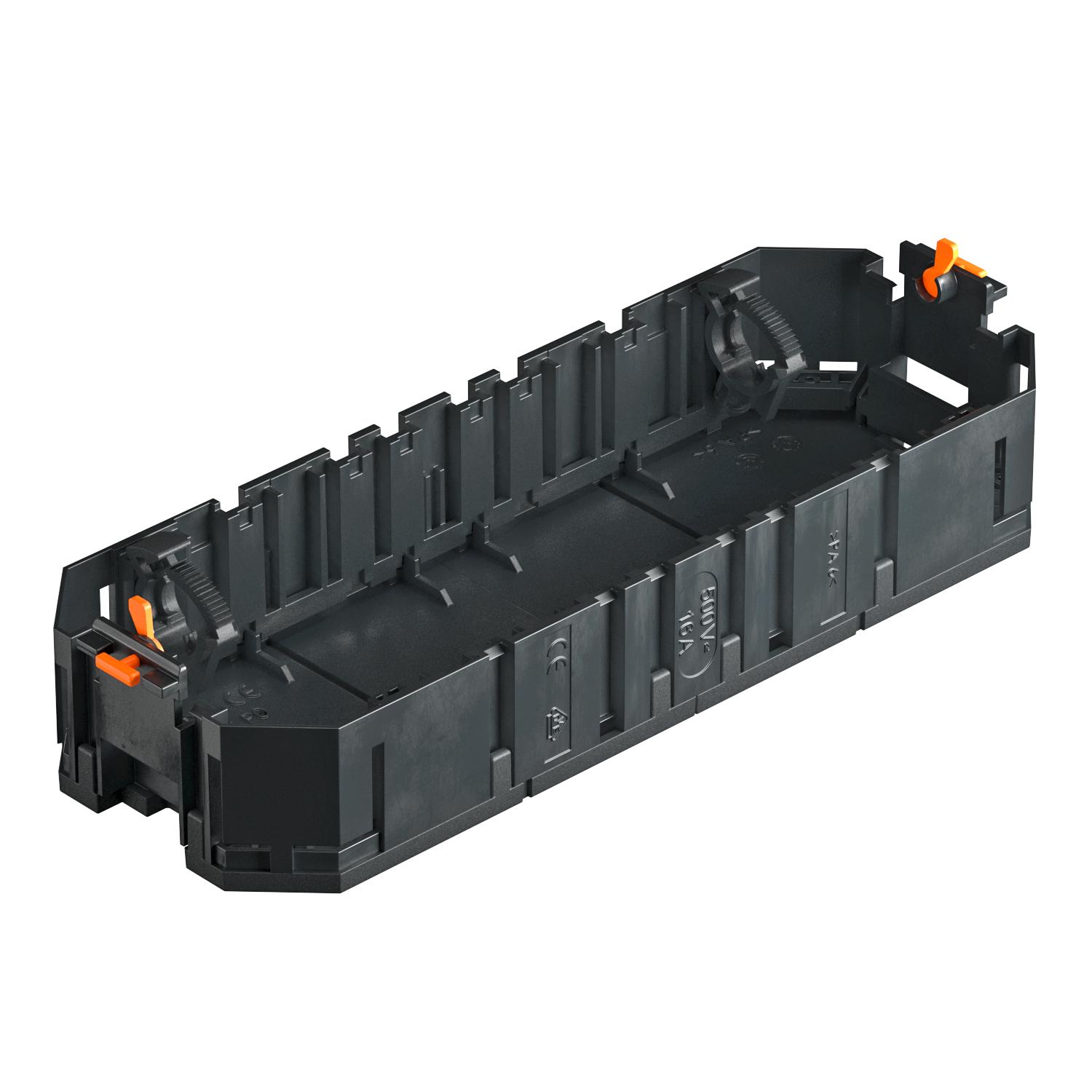

UT4 universal support, without cover plate, system length 208 mm
Item no. 7408725 | EAN 4012196435258
- Product description
-
Product descriptionUniversal support with two strain reliefs for electrical installation in device installation units of nominal sizes R7, R9 and 9.
Cover plates and accessories should be ordered separately.
-
- Technical data
-
Technical data
Colour Graphite black; RAL 9011 Dimension 208x76x36 Installation technology Grid M45 Material Polyamide No. of entries 4 Number of installable devices 4 Number of strain reliefs 2 Product series UT Universal support ROHS-conformant yes Version for Socket shape Dimensions

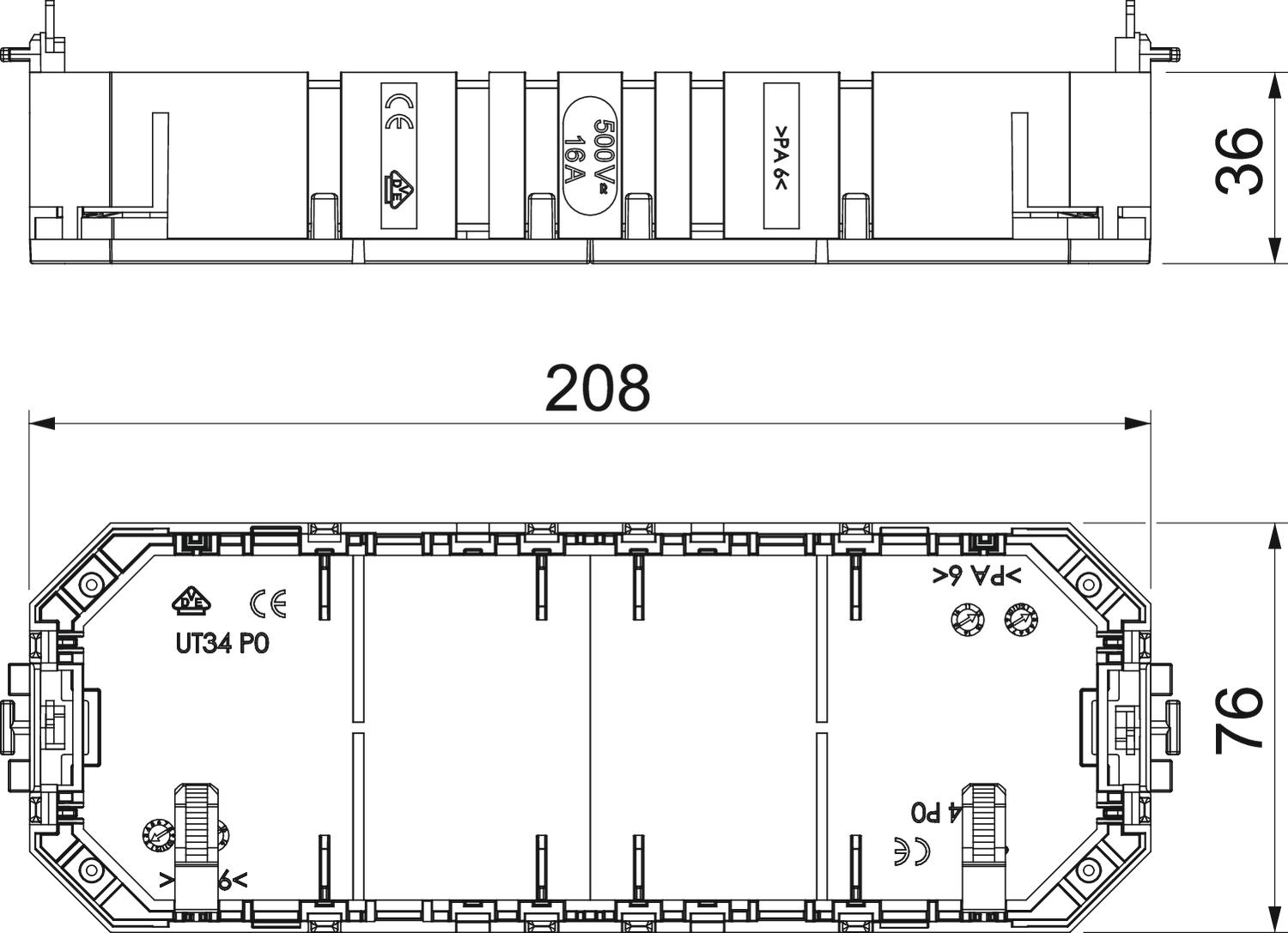

Height 36 mm Length 208 mm Width 76 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,4822 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,4822 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
- Downloads
-
Data sheet UT4 / 7408725 , 0.20MB , pdfEU declaration of conformity UT4 / 7408725 , 0.10MB , pdfREACH Declaration of conformity UT4 / 7408725 , 0.12MB , pdfRoHS Declaration of conformity UT4 / 7408725 , 0.12MB , pdfLabel approval VDE symbol approval, GES , 0.12MB , pdfMounting instructions Mounting instructions Universal support , 0.86MB , pdf
