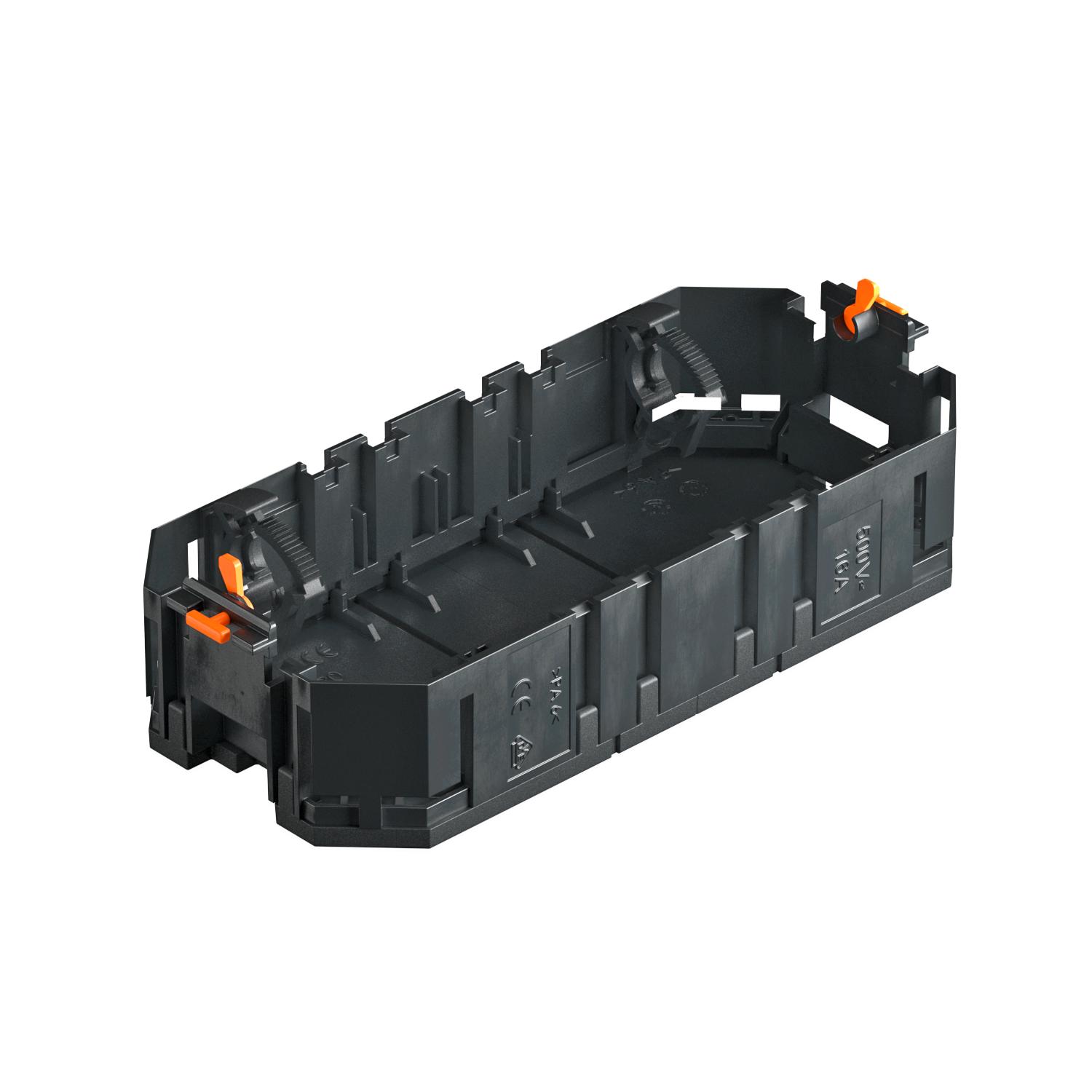

UT3 universal support, without cover plate, system length 165 mm 165
morepic-1 morepic-2 morepic-3

UT3 universal support, without cover plate, system length 165 mm

Item no. 7408721 | EAN 4012196435272

7408721 / UT3
165 mm
Product description
Product description
Universal support with two strain reliefs for electrical installations in device installation units of nominal sizes 2, R4, 4, 6 and R7 in indoor areas.


Cover plates and accessories should be ordered separately.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
Technical data

Technical data

CO2 Footprint (GWP) Cradle-to-Gate 0,3922 kg CO2e / 1 Piece
Colour Graphite black; RAL 9011

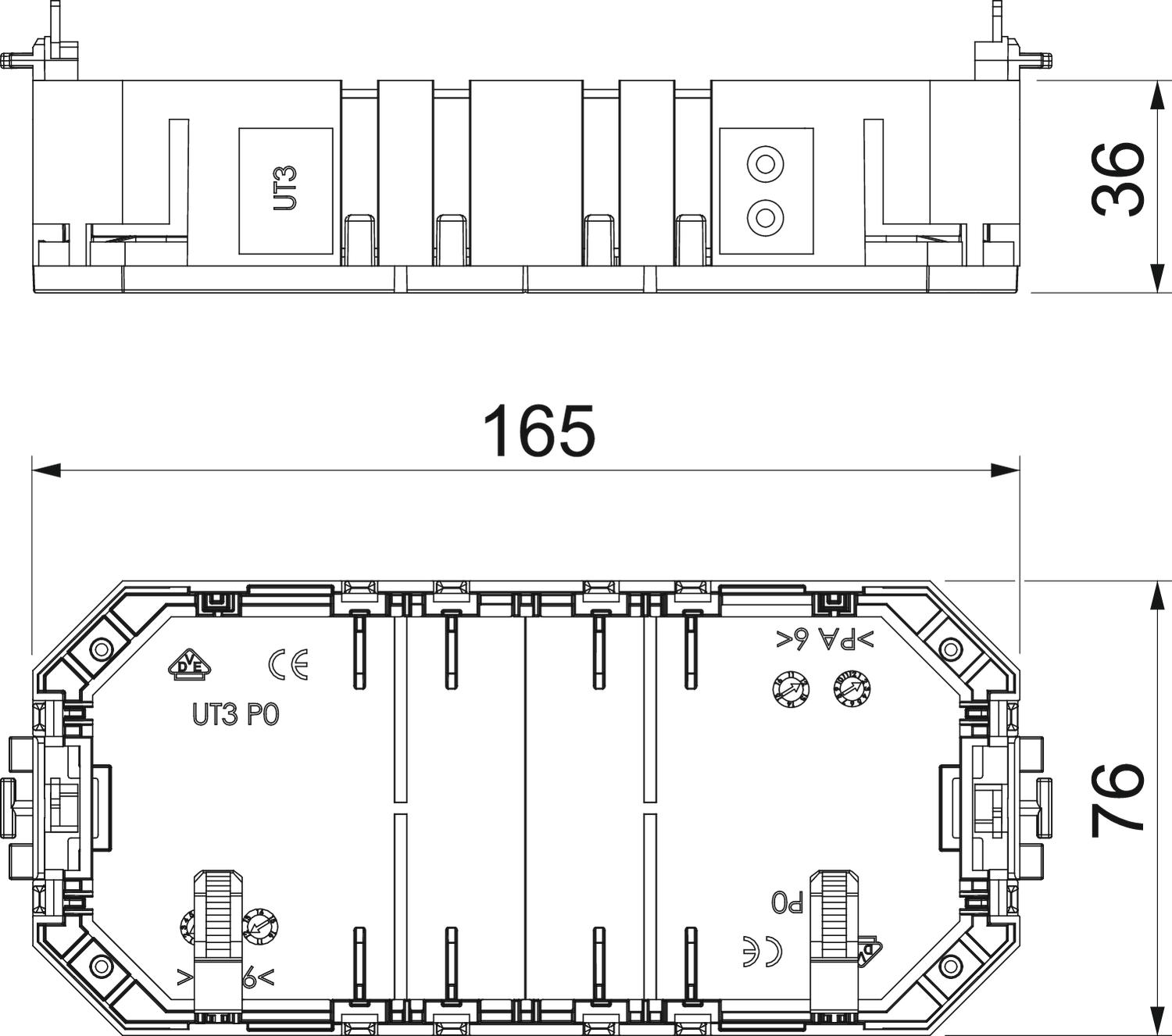

Dimension 165x76x36
Height 36 mm
Installation technology Grid M45
Length 165 mm
Material Polyamide
No. of entries 4
Number of installable devices 3
Number of strain reliefs 2
Version for Socket shape
Width 76 mm
All types

All types

Types Length Item no. Quantity SSU
UT3 165 mm 7408721
1 piece
