Underfloor outlet box for GESRM2 mounting 70 | 85
morepic-1 morepic-2

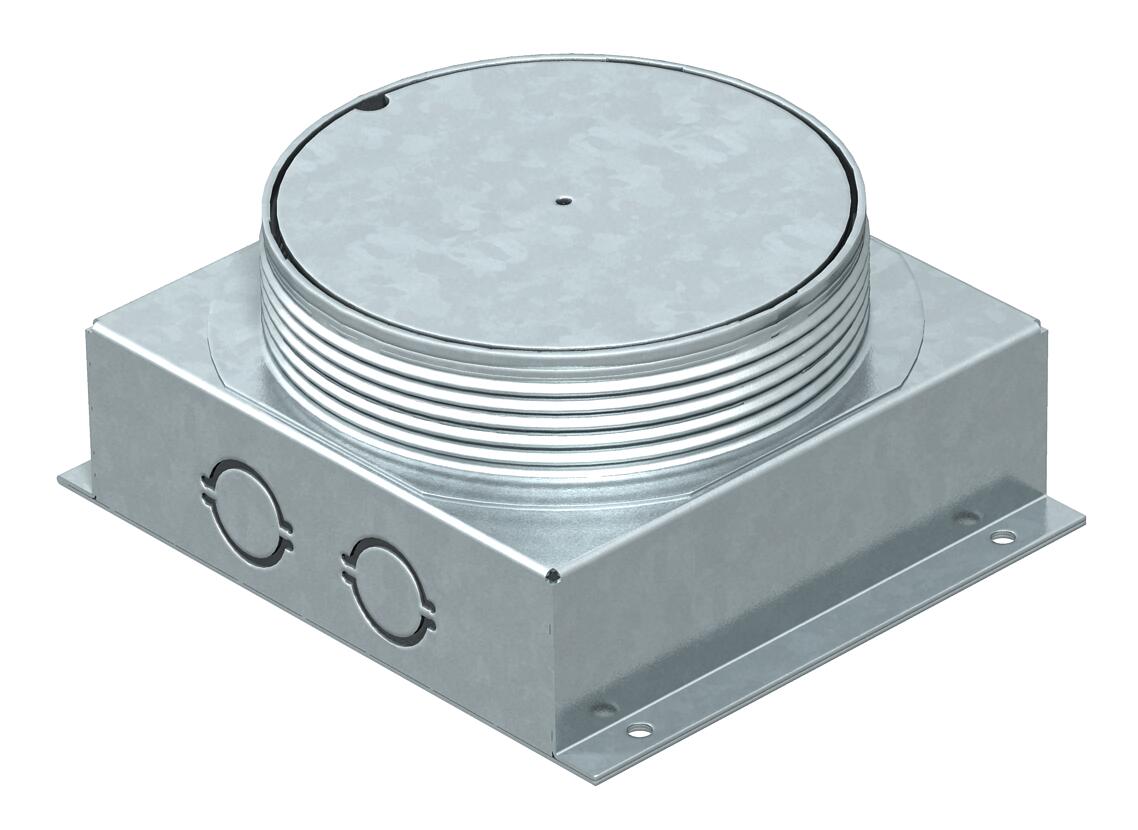

Underfloor outlet box for GESRM2 mounting

Item no. 7408558 | EAN 4012195116325

7408558 / UDL2-120 70
70 mm
85 mm
Product description
Product description
Underfloor outlet box for the installation of a GESRM2 service outlet. With 2 x 2 openings for M20 or Pg16 pipe installation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
Technical data

Technical data

Cover version Round

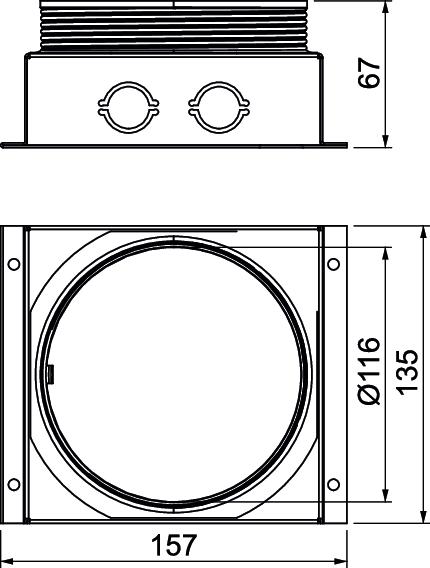

Dimension 135x157x70
For pipe connection yes
Material Steel
ROHS-conformant yes
Screed height, max. 85 mm
Screed height, min. 70 mm
Seal installation option no
Surface Strip galvanised

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate 2,9692 kg CO2e / 1 Piece
CO₂ Footprint (GWP) 2,9692 kg CO₂e
Declared Unit Units
Declared Unit Quantity 1
Determination date of CO2 value 2025-05-14T00:00:00.000+0200
All types

All types

Types Screed height, min. Screed height, max. Item no. Quantity SSU
UDL2-120 70 70 mm 85 mm 7408558
1 piece
Downloads

Download

Download

REACH Declaration of conformity UDL2-120 70 / 7408558 , 0.12MB , pdf
Download
RoHS Declaration of conformity UDL2-120 70 / 7408558 , 0.13MB , pdf
Download

No invitation to tender text is available for this product.
