Note: This article is discontinued.

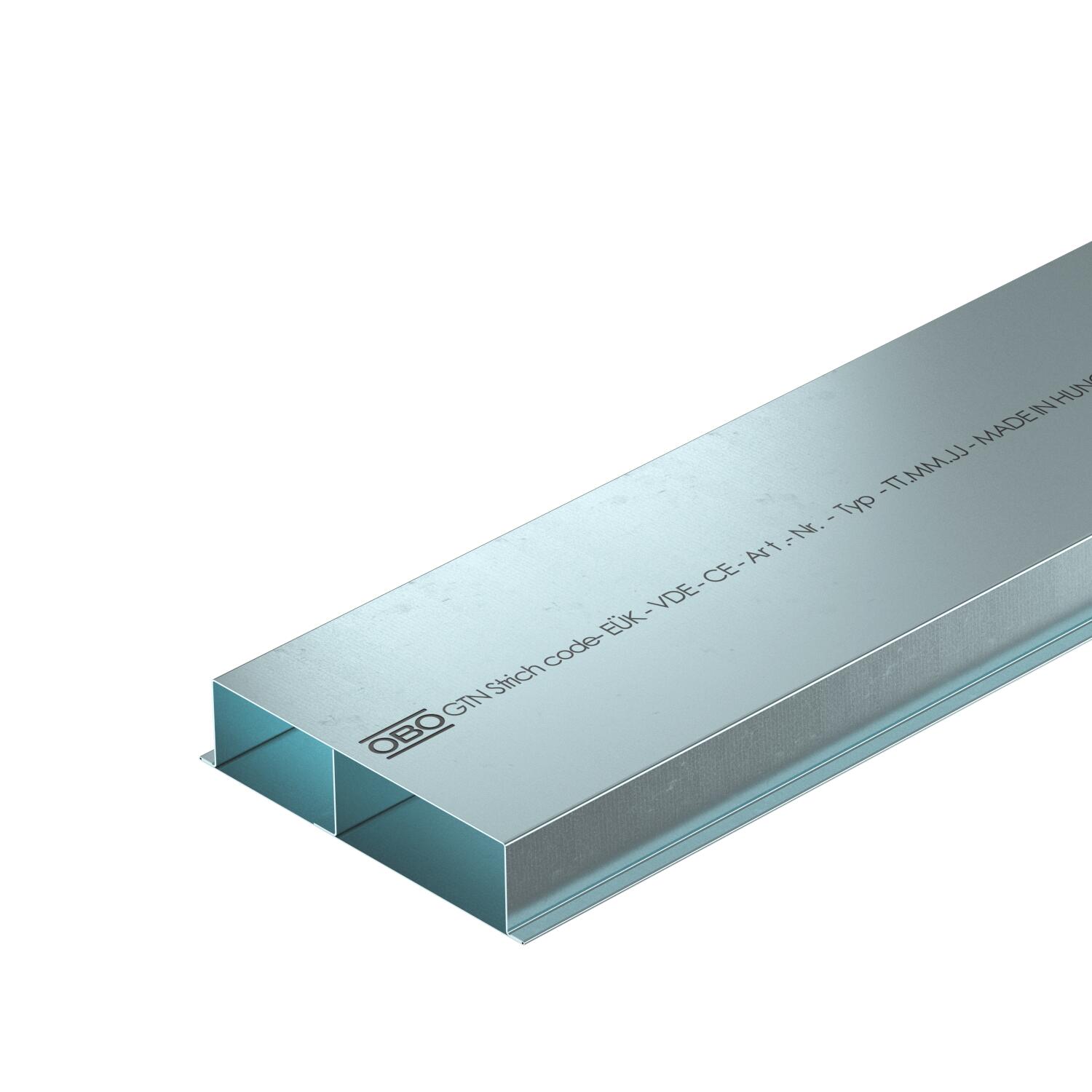

Underfloor installation duct, 2-compartment, trunking height 48 mm
Item no. 7400308 | EAN 4012195089278
- Product description
-
Product descriptionUnderfloor installation duct for laying cables under the floor.
-
- Technical data
-
Technical data
Application area Screed-covered Cross-section, draw a 3588 mm² Cross-section, draw b 4968 mm² Decouplable no Dimension 2000x190x48 Duct height, min. 48 mm Floor plate yes Material Steel Number of compartments 2 St. Number of fixed partitions 1 Removable cover no Surface Strip galvanised Usable cross-section 8556 mm² Dimensions

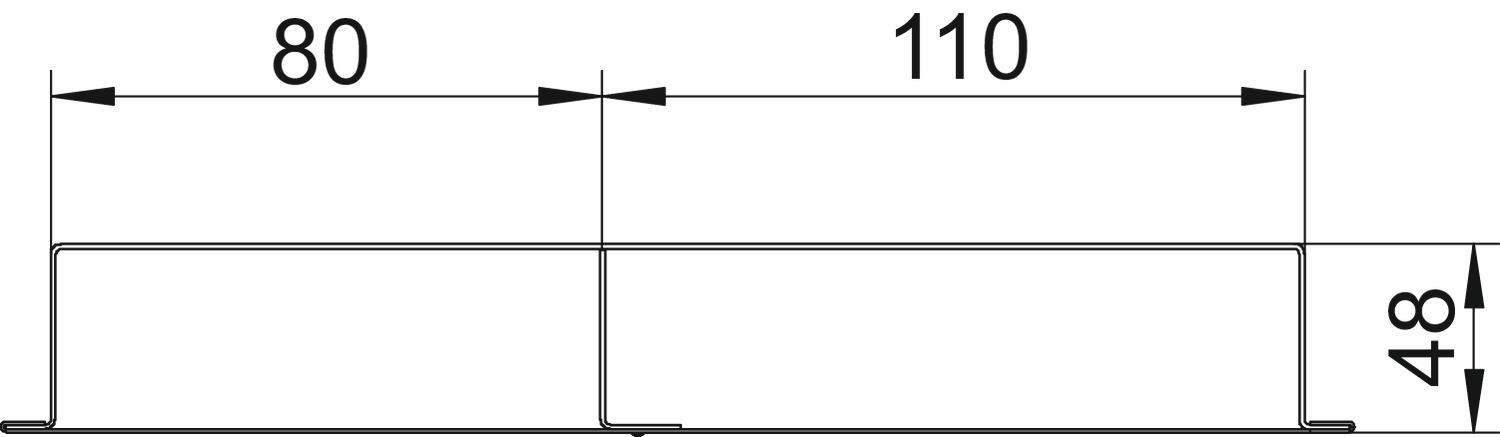

Dimension a 80 mm Dimension b 110 mm Dimension h 48 mm Height 48 mm Length 2000 mm Width 190 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 8,6764 kg CO₂e / 1 Meter CO₂ Footprint (GWP) 8,6764 kg CO₂e Declared Unit (LCA) Metres Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-04-02T00:00:00.000+0200 - All types
-
System accessories
Products Types Item no. Quantity SSU

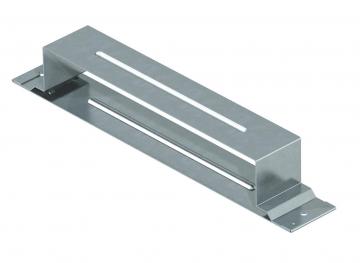

Connection shackle, height 48 mm
VL 19048E 7400964 1 piece - Downloads
-
Data sheet S2 19048 / 7400308 , 0.18MB , pdfEU declaration of conformity S2 19048 / 7400308 , 0.11MB , pdfREACH Declaration of conformity S2 19048 / 7400308 , 0.12MB , pdfRoHS Declaration of conformity S2 19048 / 7400308 , 0.13MB , pdfLabel approval VDE symbol approval, EÜK , 0.12MB , pdfMounting instructions EÜK screed-covered duct system generation 3 , 76.05MB , pdfNo invitation to tender text is available for this product.
