Underfloor box with GES9UGE
Item no. 7427474 | EAN 4012196470020
- Product description
-

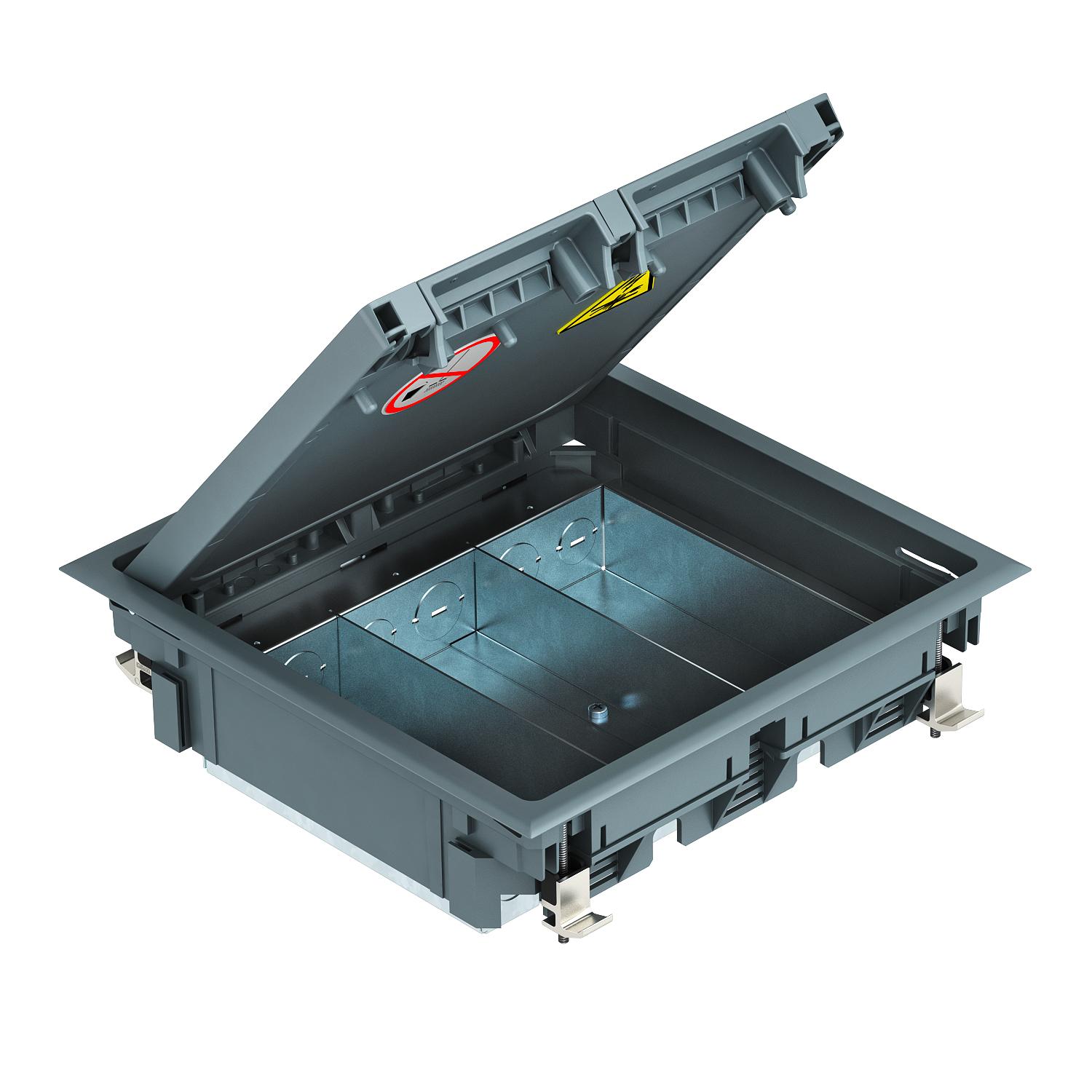

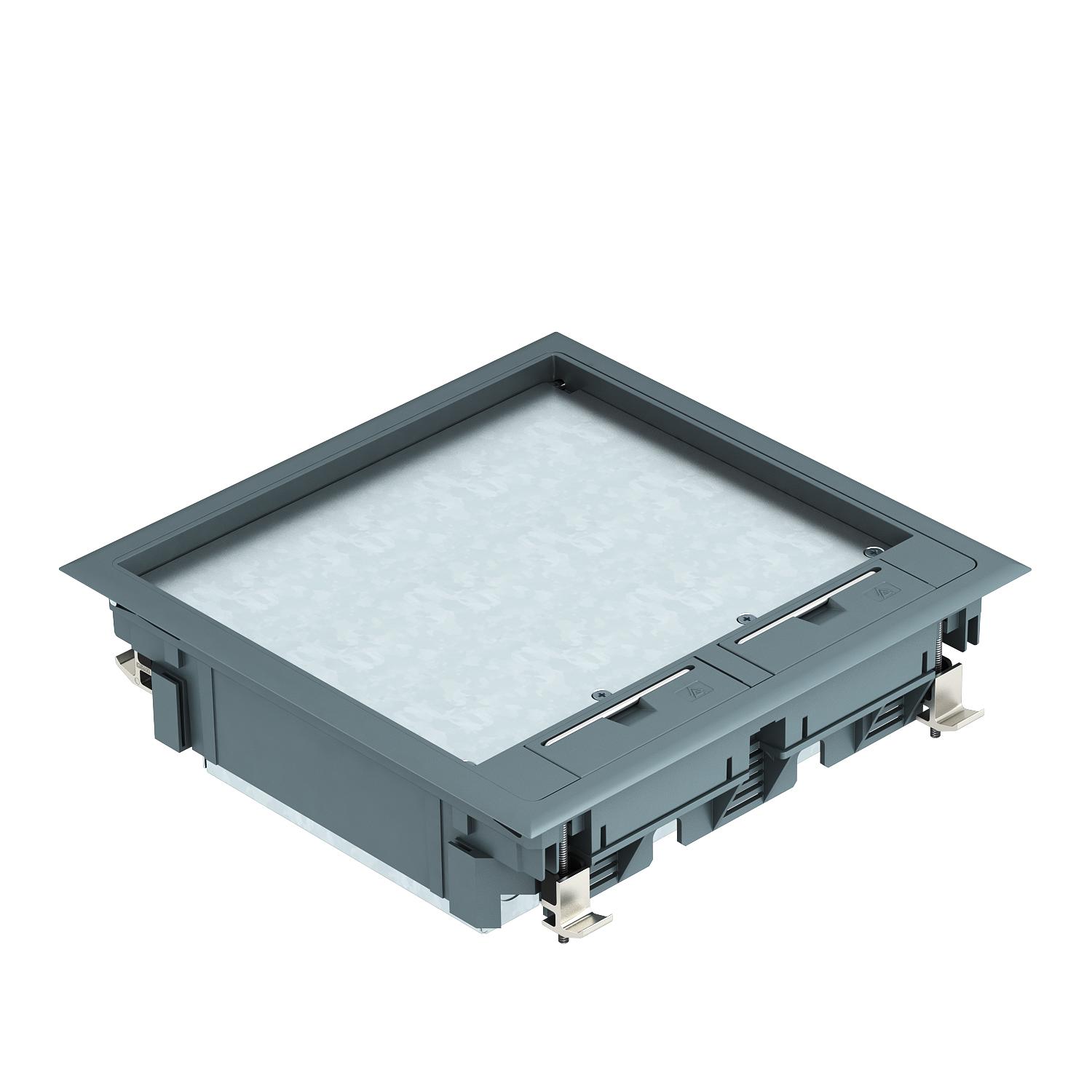

Product descriptionSquare screed socket with GES9 UGE service unit for use in raised floors for indoor use. With pre-marked insertion openings for pipelines (M25) on all four sides.
In the as-delivered state, the installation housing is closed with a mounting protection lid.
The minimum installation depth is 64 mm.
-
- Technical data
-
Technical data
Cable outlet version Swivellable cord outlet Colour Iron grey; RAL 7011 Dimension 264x264x91 Floor care Dry Frame version Carpet protection frame Heavy-duty version no Material Polyamide Nominal size for device installation units 9 Number of installable devices 6 Opening mechanism Handle ROHS-conformant yes Seal installation option no Suitable for cavity floor installation no Suitable for raised floor installation no Suitable for underfloor ducts no Dimensions

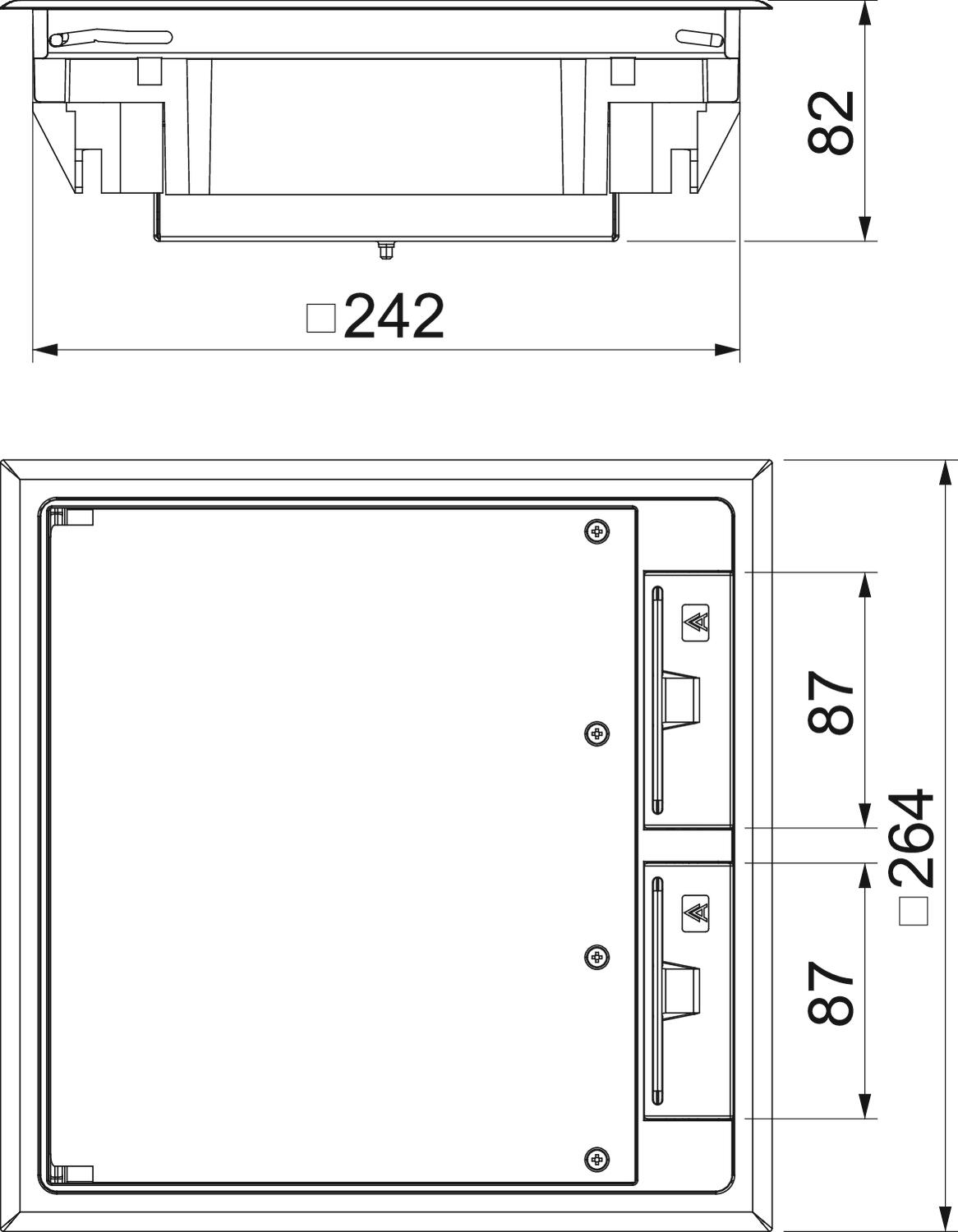

Length 264 mm Width 264 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 9,1241 kg CO2e / 1 Piece CO₂ Footprint (GWP) 9,1241 kg CO₂e Declared Unit Units Declared Unit Quantity 1 Determination date of CO2 value 2025-05-27T00:00:00.000+0200 - All types
- Downloads
-
Data sheet RFB GES9 7011 BS / 7427474 , 0.20MB , pdfSafety data sheet RFB GES9 7011 BS / 7427474 , 0.05MB , pdfREACH Declaration of conformity RFB GES9 7011 BS / 7427474 , 0.12MB , pdfRoHS Declaration of conformity RFB GES9 7011 BS / 7427474 , 0.13MB , pdf
