Trunking unit, blank, height 65 mm
Item no. 7402225 | EAN 4012196434435
- Product description
-

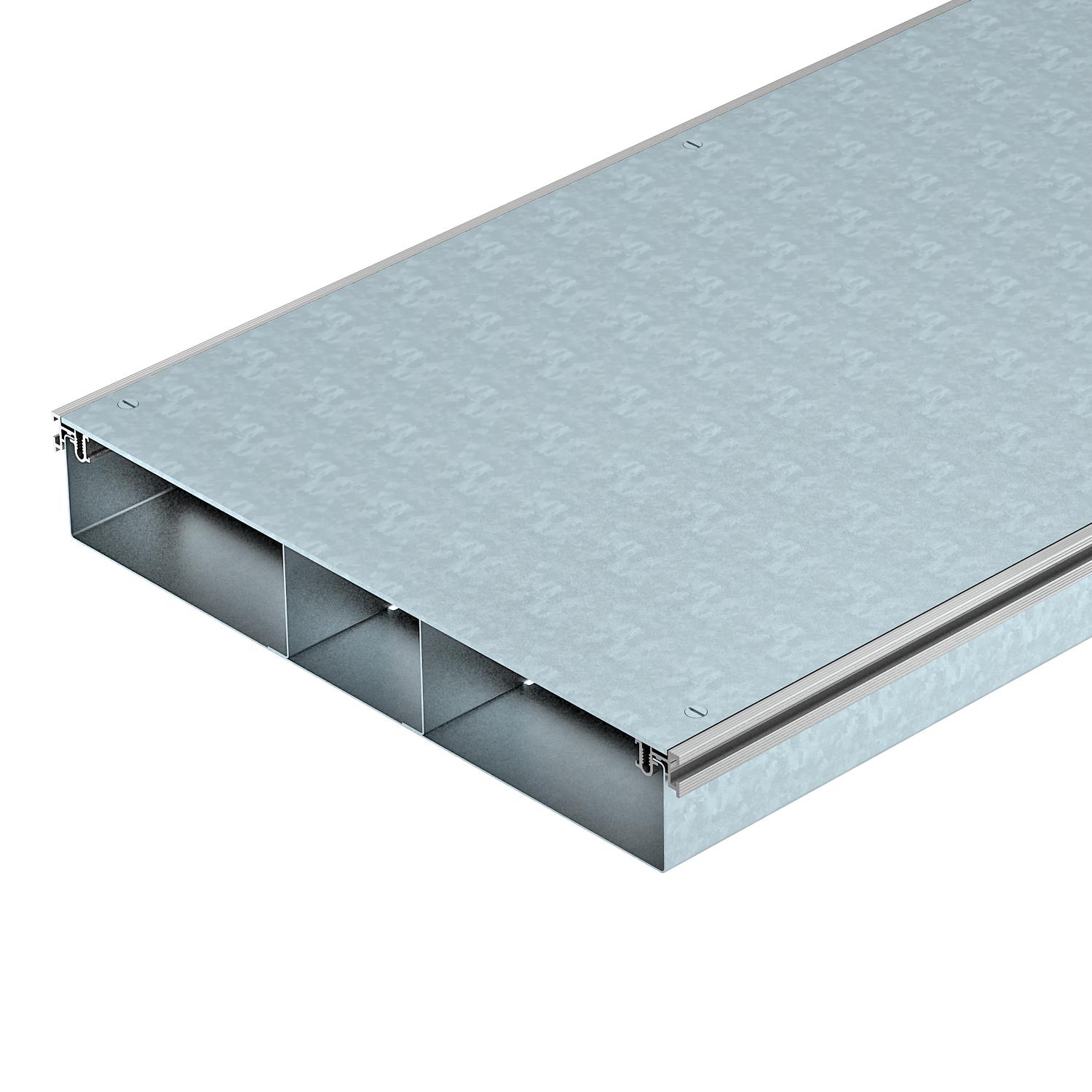

Product description3 compartment flush floor trunking with 3 blind lids. Trunking unit consists of trunking connectors, fixing brackets and separating retainers.
-
- Technical data
-
Technical data
Cover fastening, locking no Decouplable no Dimension 2400x400x65 Expansion option For installation of accessories Heavy-duty version no Installation opening for on-floor tank no Material Steel Mounting opening Without Number of compartments 3 St. Removable cover yes Seal installation option no Separating retainer fastening Lock Suitable for expansion joint no Surface Strip galvanised With separating retainer yes Dimensions

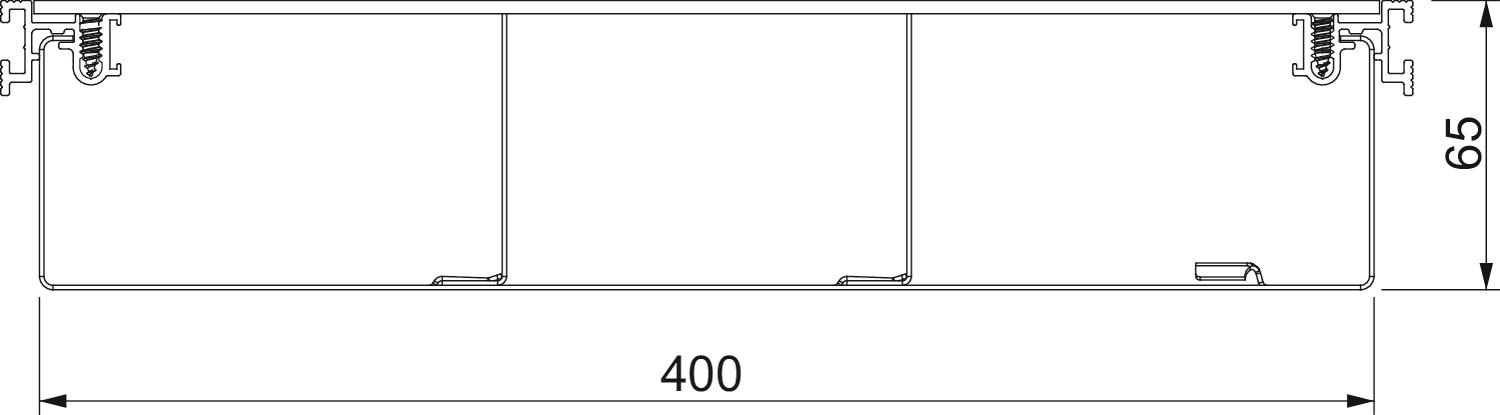

Dimension b 400 mm Dimension h 65 mm Height 65 mm Length 2400 mm Width 400 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 182,3453 kg CO2e / 1 Piece CO₂ Footprint (GWP) 182,3453 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-27T00:00:00.000+0200 - All types
- Downloads
-
Data sheet OKA-T 40065 / 7402225 , 0.17MB , pdfREACH Declaration of conformity OKA-T 40065 / 7402225 , 0.13MB , pdfRoHS Declaration of conformity OKA-T 40065 / 7402225 , 0.13MB , pdf
