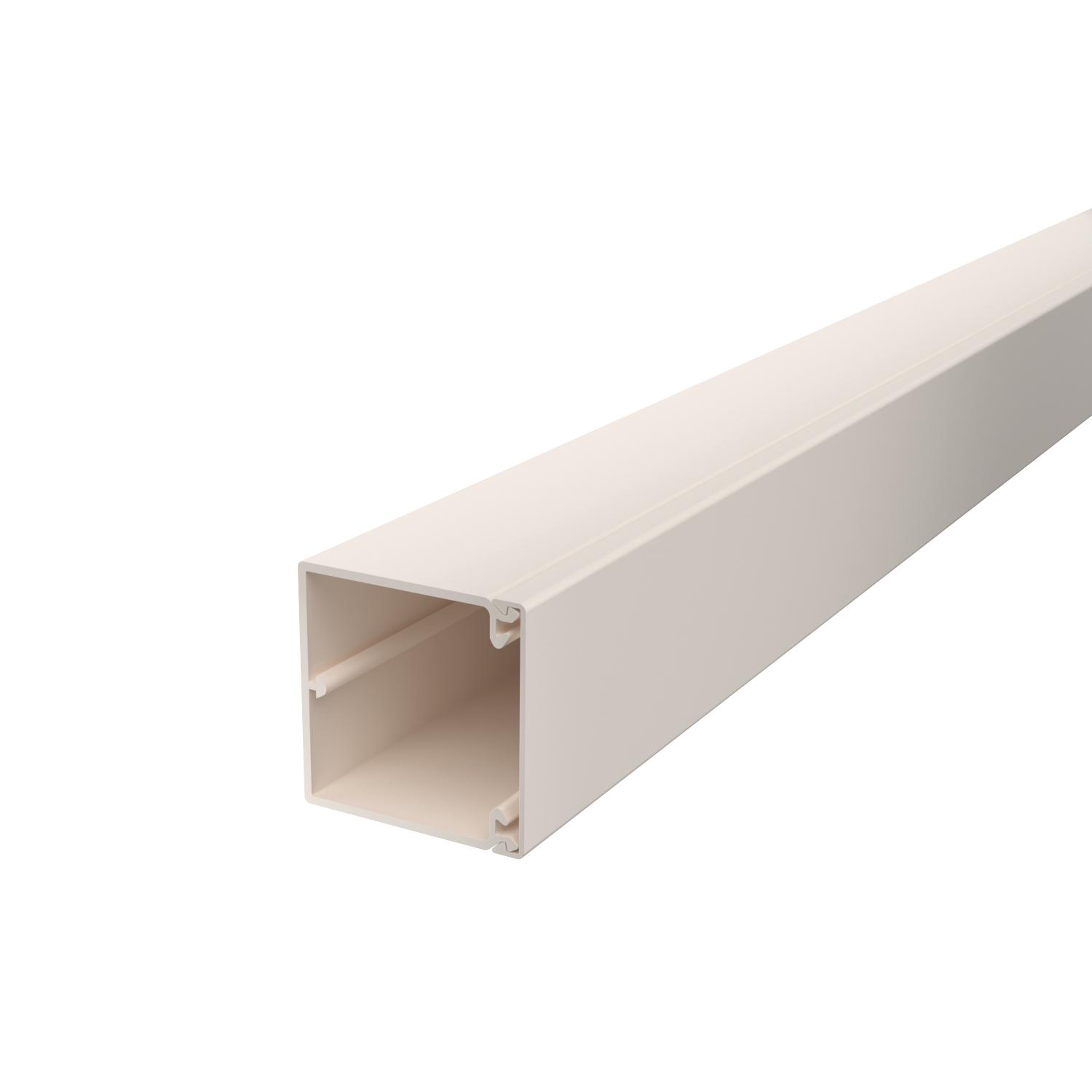

Trunking, type WDK 60060
Item no. 6021948 | EAN 4012196020171
- Product description
-
Product descriptionTrunking cover and base with base perforation.
Four cover clips included
Lid clamp can be moved along the entire length of the trunking.
-
- Technical data
-
Technical data

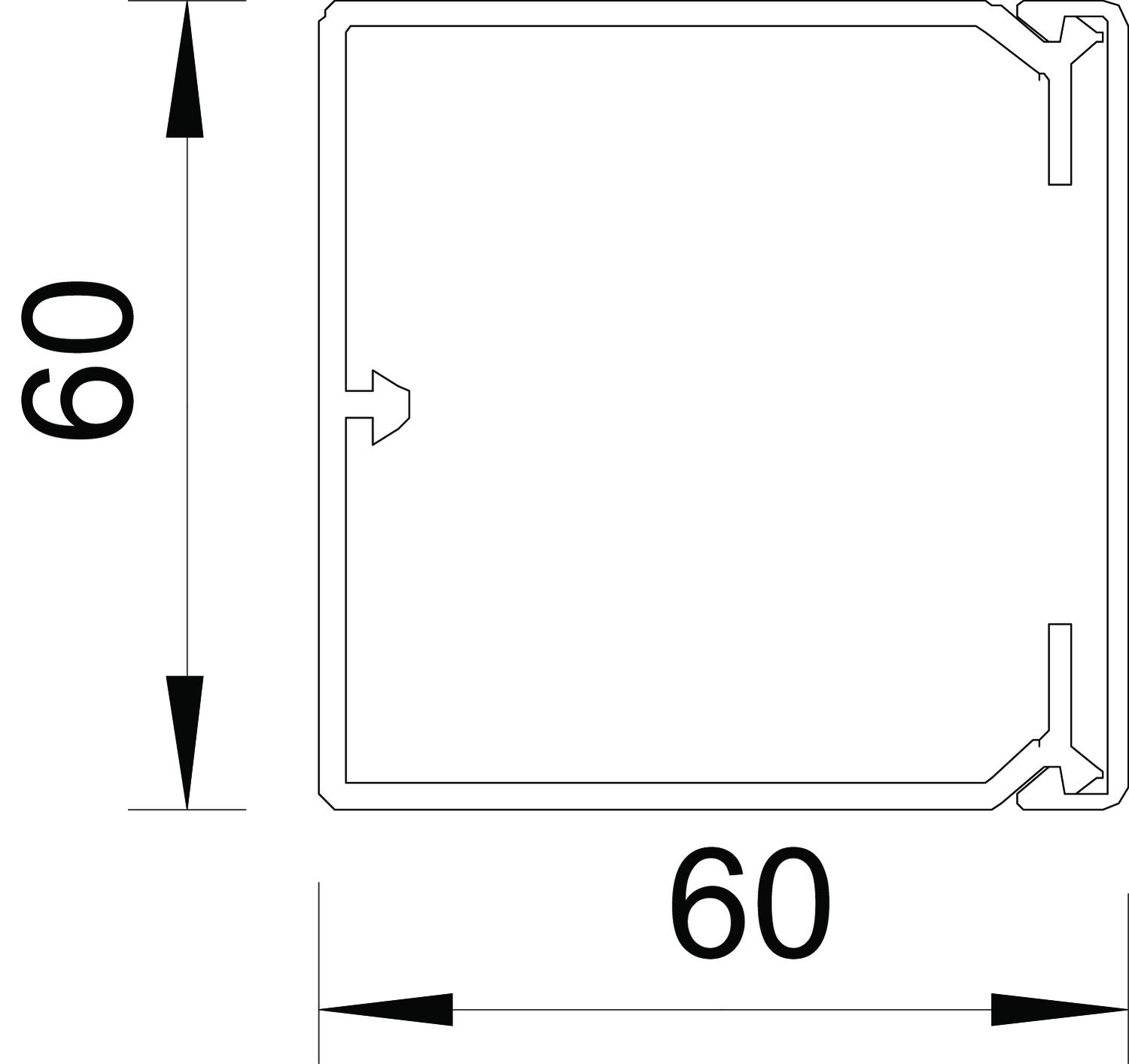

Antibacterial treatment no Cable retaining clip yes CO2 Footprint (GWP) Cradle-to-Gate 1,6092 kg CO2e / 1 Meter Colour Cream; RAL 9001 Delivery on a roll no Dimension 60x60x2000 Duct connector no Fastening type Base perforation Halogen-free no Height 60 mm Length 2000 mm Maintain electrical functions no Material Polyvinylchloride Number of cables NYM 3 x 1.5 mm² Ø 10.5 mm (without socket) 16 Number of cables NYM 3 x 2.5 mm² Ø 11.5 mm (without socket) 13 Number of cables NYM 5 x 1.5 mm² Ø 12.0 mm (without socket) 12 Number of insertable partitions 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP30 Protection rating IK code IK04 Protective film no Usable cross-section 2863 mm² Version, cable trunking cover Loose Width 60 mm - All types
