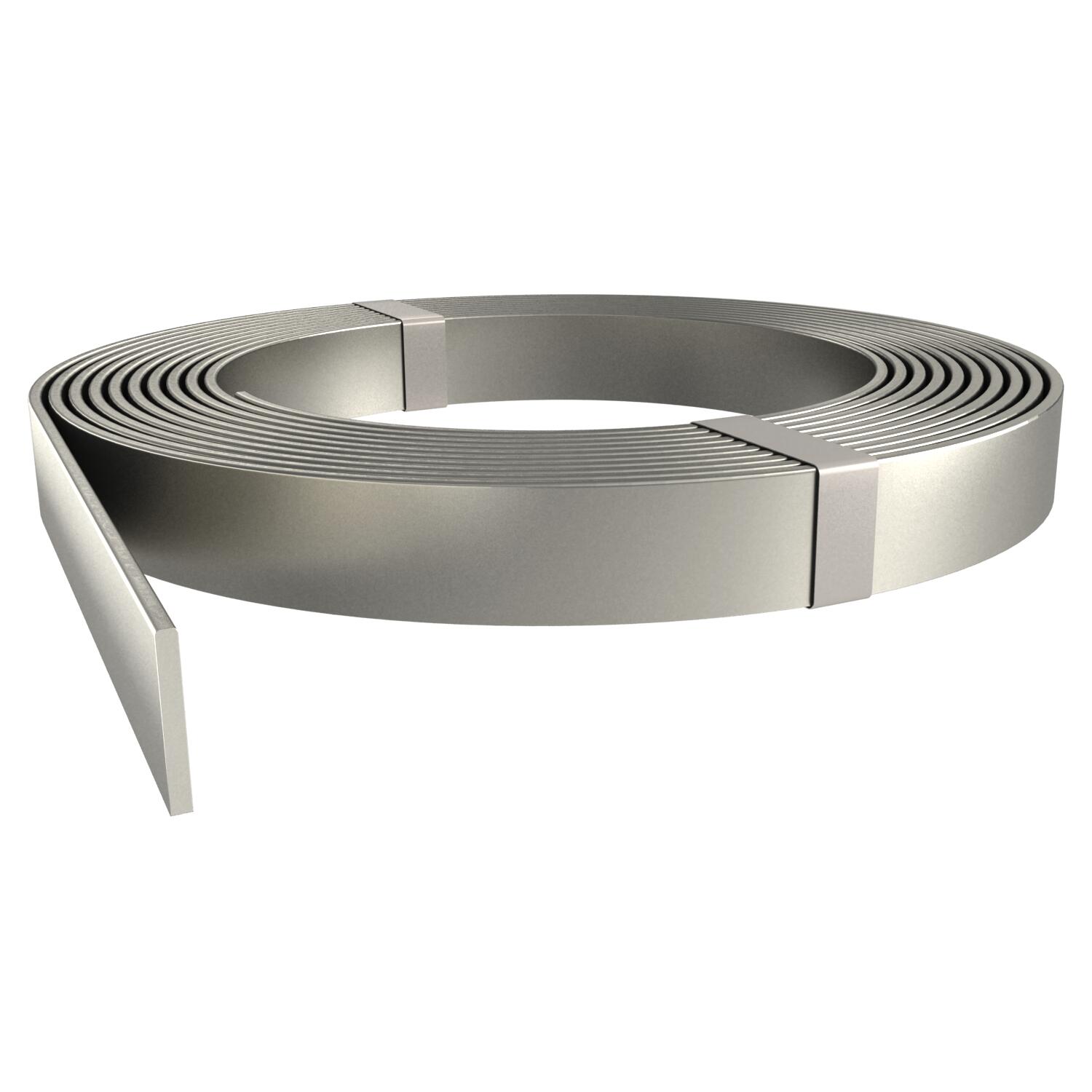

Stainless steel flat conductor
Item no. 5018730 | EAN 4012195022015
- Product description
-
Product description• Can be used as an earthing conductor according to DIN EN 62561-2 (VDE 0185-561-2)
• Corresponds to the requirements of VDE 0185-305 (IEC 62305)
• According to the foundation earth electrode standard DIN 18014, V4A is required in the earth
• For use in areas at risk of corrosion
• For lightning protection, earthing systems and ring equipotential bonding
-
- Technical data
-
Technical data
Cross-section 105 mm² Dimension 30x3,5mm Length tolerance ± 5 % Material Stainless steel 1.4571/1.4404 Nomal ring (approx. kg) 21 Nomal ring (approx. m) 25 ROHS-conformant yes Dimensions

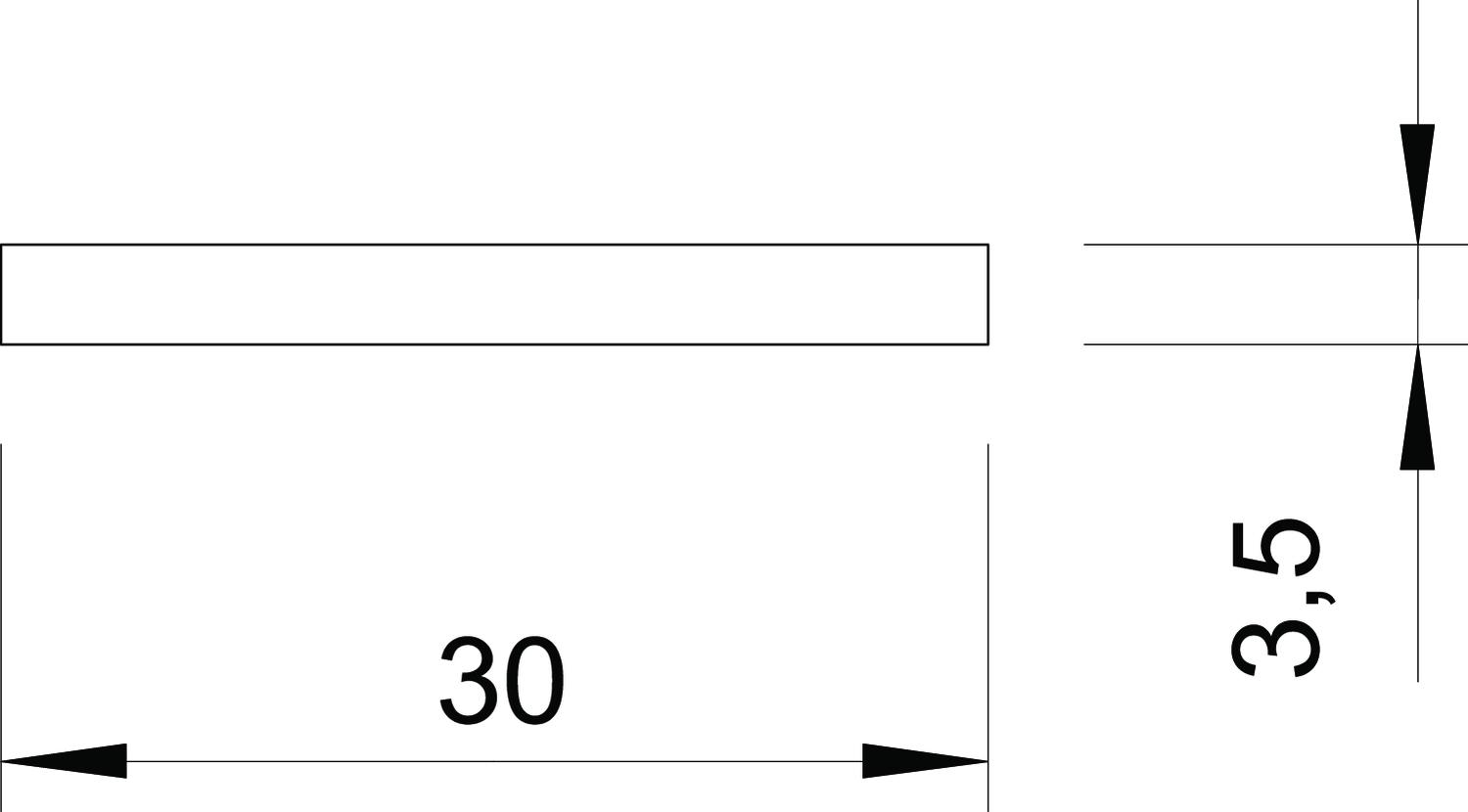

Dimension B 30 mm Dimension H 3,5 mm Height 3,5 mm Width 30 mm - All types
- Downloads
-
Data sheet 5052 V4A 30X3.5 / 5018730 , 0.15MB , pdfEU declaration of conformity 5052 V4A 30X3.5 / 5018730 , 0.06MB , pdfREACH Declaration of conformity 5052 V4A 30X3.5 / 5018730 , 0.12MB , pdfRoHS Declaration of conformity 5052 V4A 30X3.5 / 5018730 , 0.12MB , pdf
