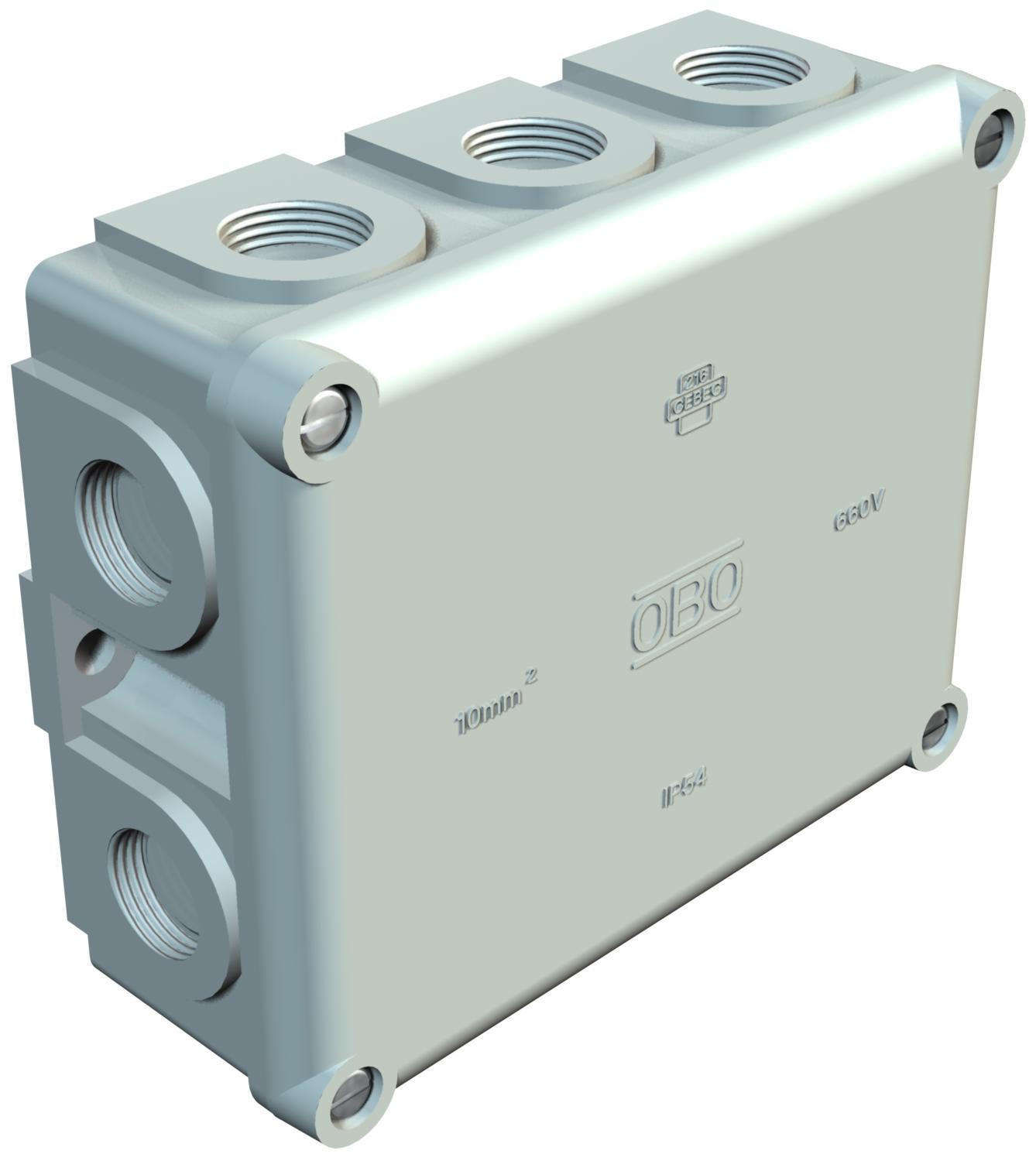

Junction box, B 11 M, with thread
Item no. 2002345 | EAN 4012195105435
- Product description
-
Product descriptionProtection rating IP54, nominal voltage 660 V, nominal cross-section 10 ÷ mm², two fastening holes for screws up to 6 mm Ø on the outside of the box, four cover screws, 10 break-out entries with thread M20 x 1.5, primarily for cable glands with short connecting thread.

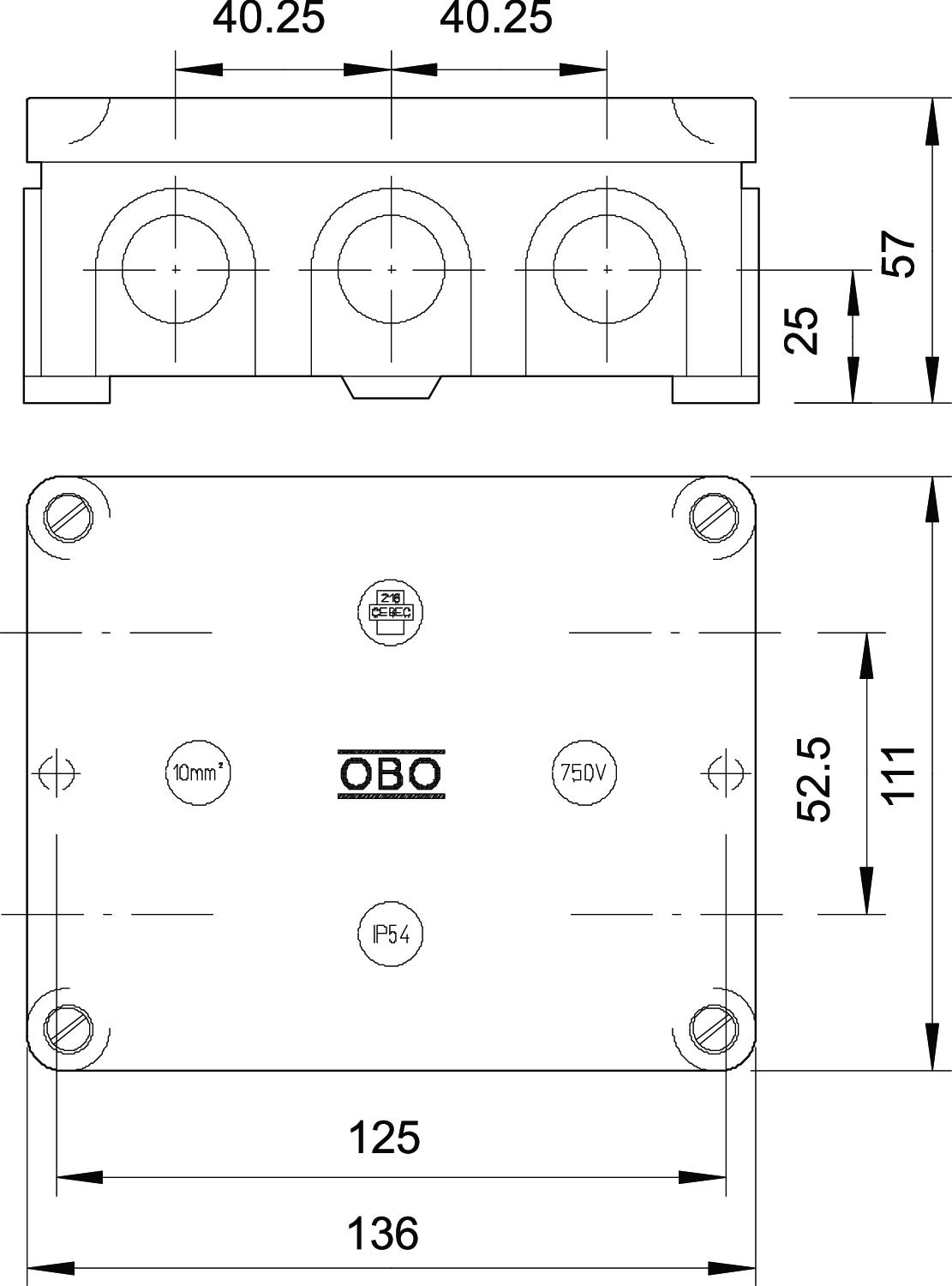

Clear internal dimensions: 125x100x44 mm.
B 11 M empty: without earthing terminal
-
- Technical data
-
Technical data
Colour Light grey; RAL 7035 Cover Not transparent Cover fastening Screwed Dimension 136x111x57 Entry from rear no Expandable no Explosion-tested version no Flame-resistant Acc. to VDE 0471/DIN 695 Part 2-1, test temperature 750°C For Ex zone Without For Ex zone dust Without For Ex zone gas Without for pipe diameter 20 mm Halogen-free yes Impact-resistant no Maintain electrical functions Without Material Duroplast, Aminoplast Typ 131.5 Measured insulation voltage Vi 660 V No. of entries 10 Nominal cross-section, min. 10 mm² Nominal voltage 660 V Product series B Series Protection rating IP54 ROHS-conformant yes Sealable yes Shape Rectangular Transparent lid no Type of entry Cable Type of entry Gland Type of housing penetration Thread and pre-marking Weatherproof no with lid yes With screening no Dimensions
Clear internal dimensions 125x100x44 mm Height 57 mm Length 111 mm Width 136 mm CO2 footprint (Product Carbon Footprint)
CO2 Footprint (GWP) Cradle-to-Gate 0,6625 kg CO2e / 1 Piece CO₂ Footprint (GWP) 0,6625 kg CO₂e Declared Unit (LCA) Units Declared Unit Quantity (LCA) 1 Determination date of CO2 value 2025-05-14T00:00:00.000+0200 - All types
