Fastening clip
Item no. 2222035 | EAN 4012195214038
- Product description
-

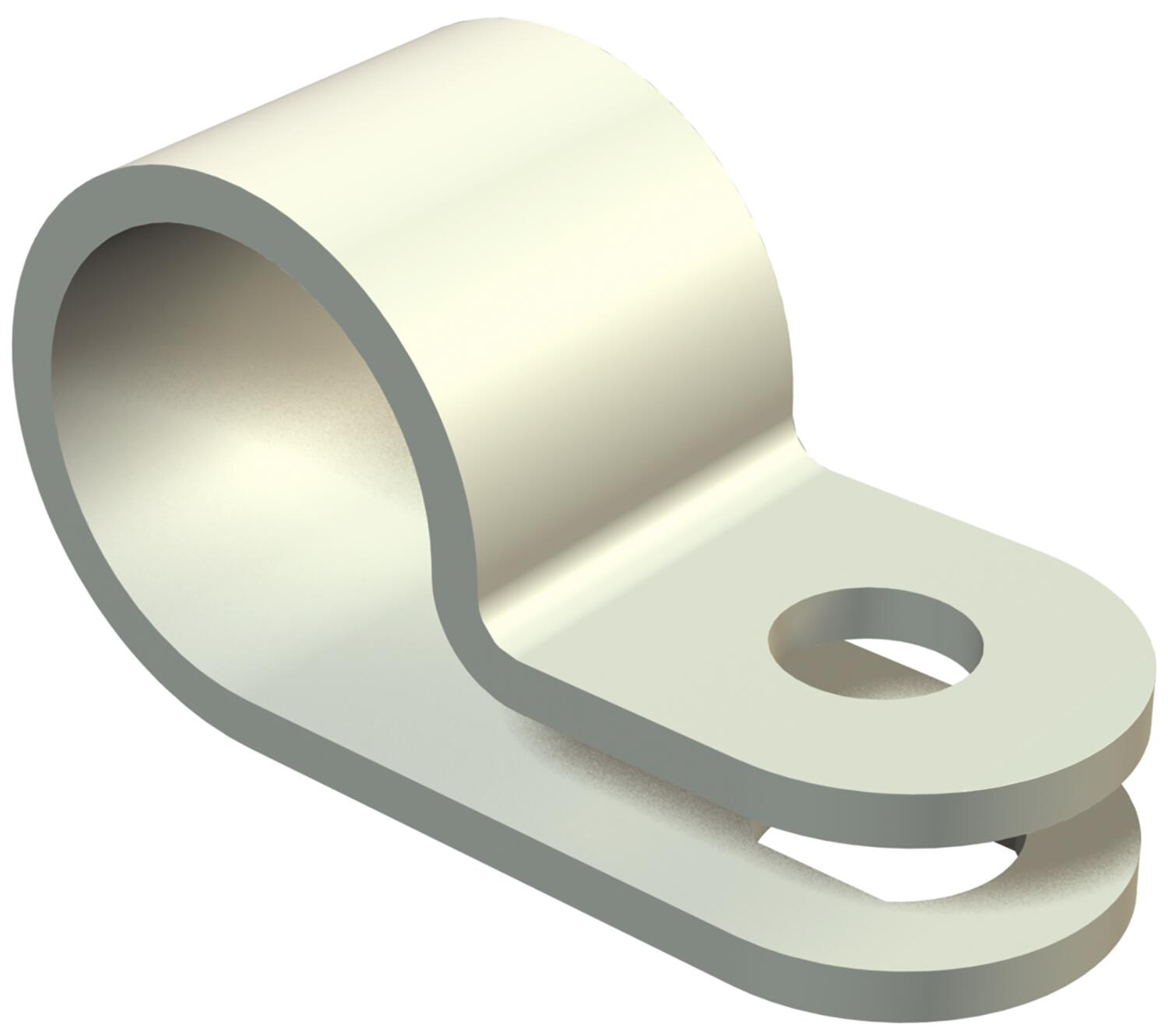

Product descriptionFastening clip 3.2 mm
-
- Technical data
-
Technical data

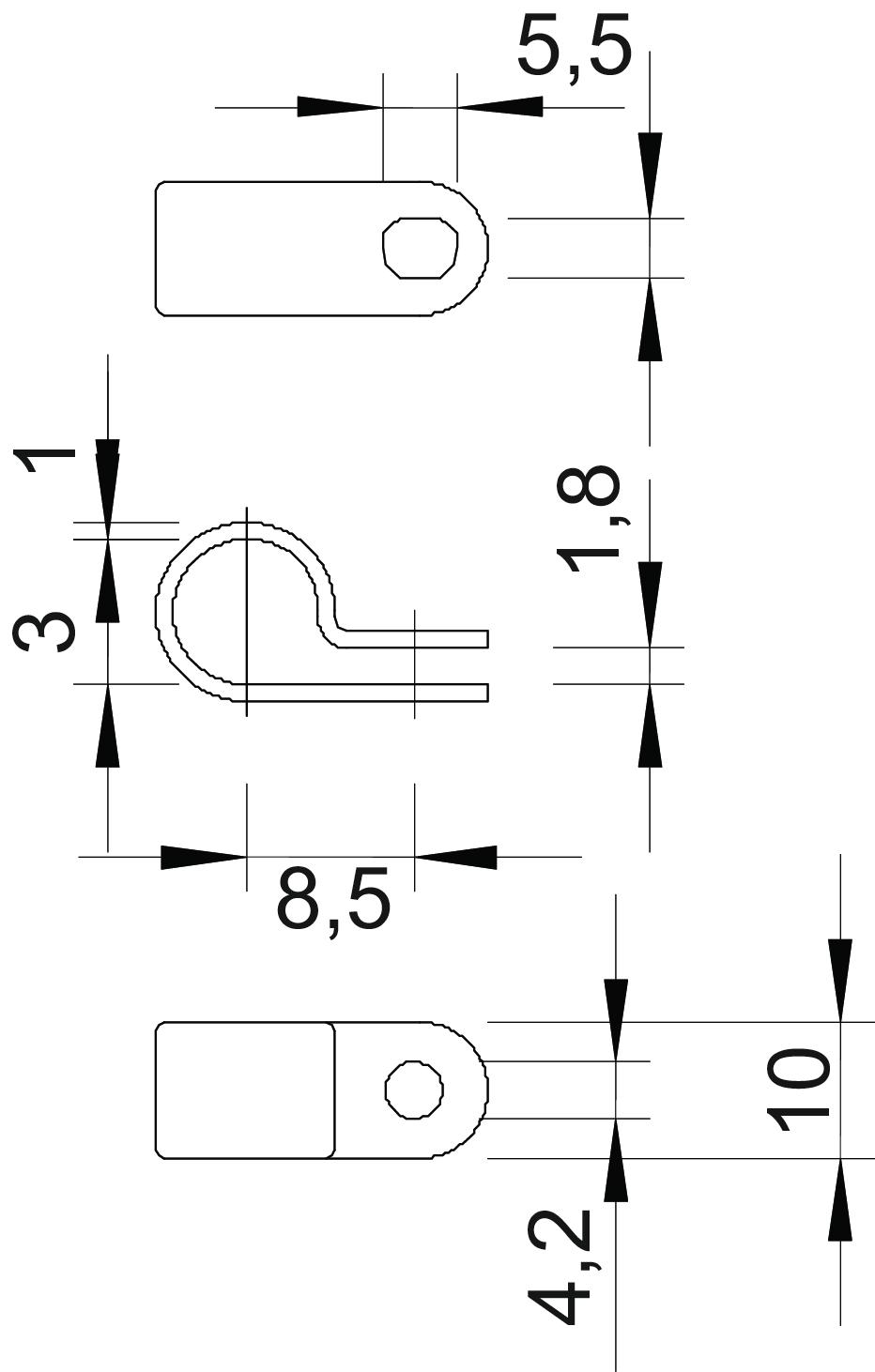

CO2 Footprint (GWP) Cradle-to-Gate 0,0014 kg CO2e / 1 Piece Colour Light grey; RAL 7035 Dimension 3,2mm Dimension d 3 mm Dimension e 8,5 mm Dimension s 1 mm Dimension x 1,8 mm Fastening type Screw hole For diameter 3,2 Halogen-free yes Material Polyamide Nominal diameter 3,2 mm Number of cables/pipes 1 Plastic-covered no Suitable in fire protection area no UV-resistant no Version for Closed - All types
- Downloads
-
Data sheet 255 3.2 LGR / 2222035 , 0.18MB , pdfEU declaration of conformity 255 3.2 LGR / 2222035 , 0.10MB , pdfREACH Declaration of conformity 255 3.2 LGR / 2222035 , 0.12MB , pdfRoHS Declaration of conformity 255 3.2 LGR / 2222035 , 0.12MB , pdf
