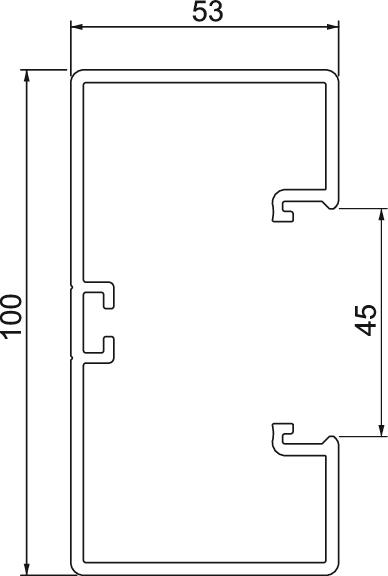

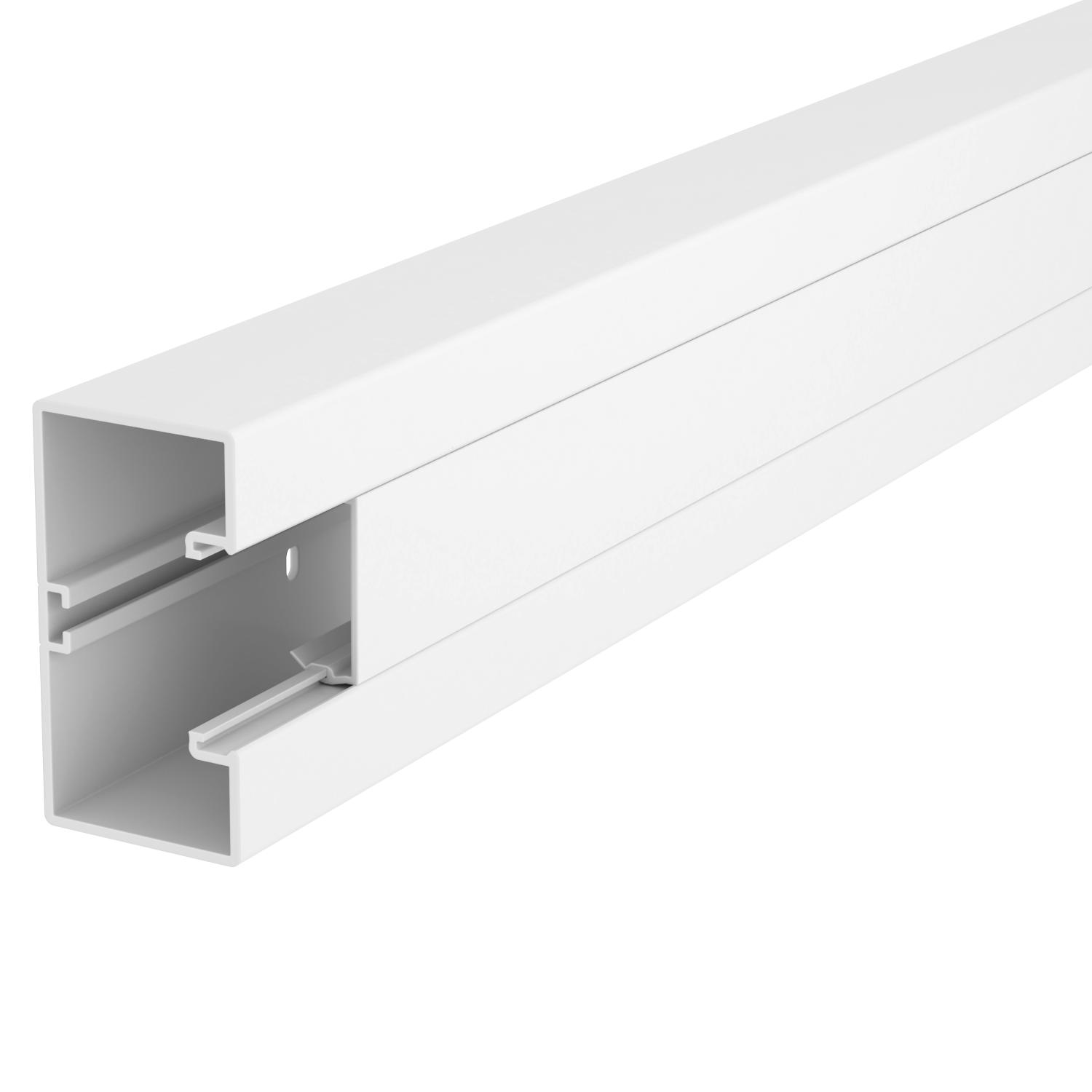

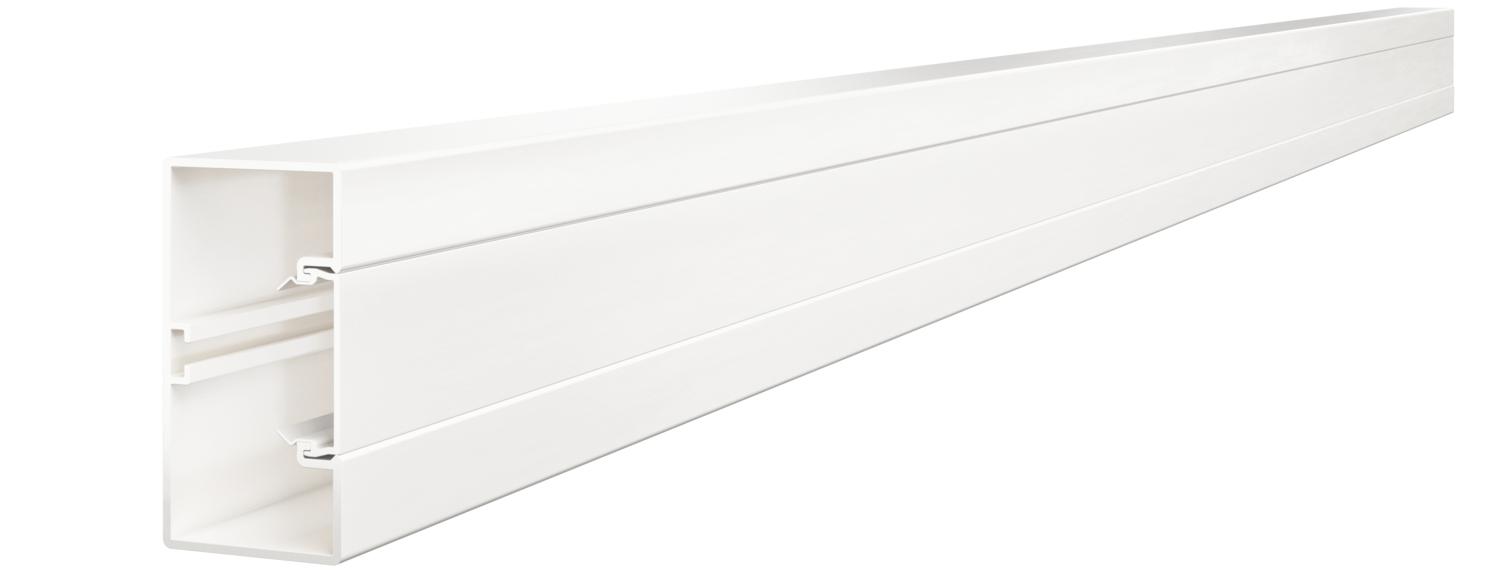

Device installation trunking Rapid 45-2, trunking width 100, trunking height 53
Item no. 6113000 | EAN 4012196419036
- Product description
-
Product descriptionTrunking base and cover with base perforation for direct wall mounting.
-
- Technical data
-
Technical data
Antibacterial treatment no Base perforation With base perforation Cable retaining clip no CO2 Footprint (GWP) Cradle-to-Gate 2,6547 kg CO2e / 1 Meter Colour Pure white; RAL 9010 Cover mounting type Internal Cover supplied yes Cover width 45 mm Dimension 53x100x2000 Duct connector no Halogen-free no Height 53 mm Length 2000 mm Material Polyvinylchloride Mounting perforation in base yes Number of covers 1 Number of insertable partitions 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -15 °C Protection rating IP40 Protection rating IK code IK08 Protective film yes Rear panel version (inner side) Continuous C profile Rectangular shape yes Symmetrical yes Usable cross-section 4400 mm² Width 100 mm - All types
- Downloads
-
Data sheet GK-53100RW / 6113000 , 0.18MB , pdfEU declaration of conformity GK-53100RW / 6113000 , 0.10MB , pdfUK Declaration of Conformity GK-53100RW / 6113000 , 0.09MB , pdfREACH Declaration of conformity GK-53100RW / 6113000 , 0.12MB , pdfRoHS Declaration of conformity GK-53100RW / 6113000 , 0.13MB , pdfLabel approval VDE symbol approval Rapid45-2 GKH , 0.31MB , pdfMounting instructions Geräteeinbaukanal Rapid 45-2® , 2.65MB , pdfNo invitation to tender text is available for this product.
