Note: This article is discontinued. You can find the current article here: 1186436 / Clamp clip 2056 H-foot 1-fold, plastic pressure sleeve, AI

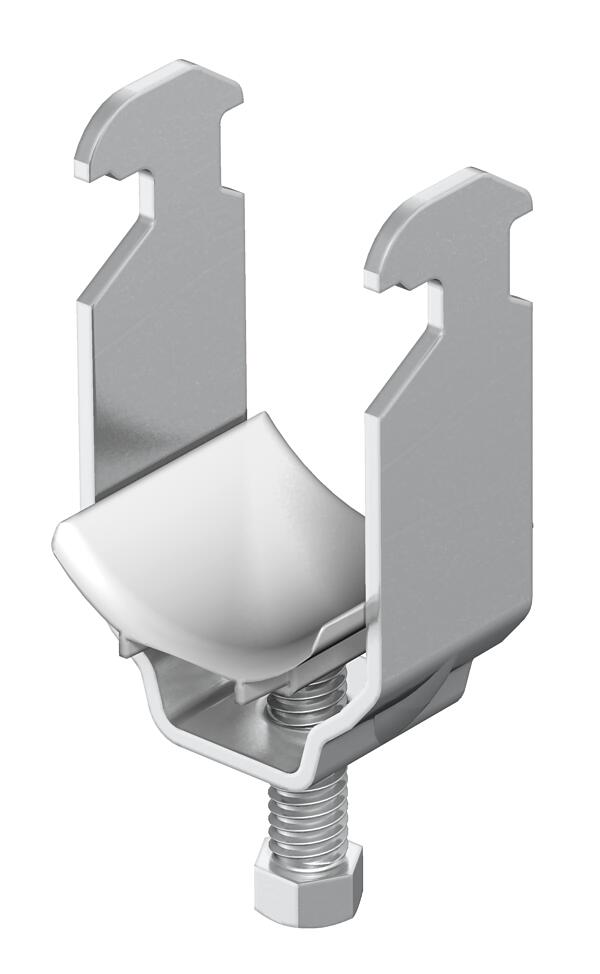

Clamp clip, single, plastic pressure trough, ALU 34 | 40 | 2

Clamp clip, single, plastic pressure trough, ALU

Item no. 1183257 | EAN 4012195077596

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	2 Nm

Product description

Product description

Suitable for all C profile rails with 16–17 mm slot width; aluminium ALMg 3 clamp and bolt, polypropylene pressure sleeve, halogen-free, colour light grey RAL 7035.
(Metal pressure troughs on request.)

The clamp clips 2056/ALU, in the version for one cable according to VDE 0298-1, are suitable for individual routing of single-wire cables in rotary current networks, as there is no closed circuit. However, the lower mechanical resistance of the aluminium clips must be taken into account for short circuits, i.e. keep the distance between the clips as short as possible in a longitudinal direction and ensure sufficient side spacing between the cables.

Technical data

Technical data

Clamping range D, max.	40 mm
Clamping range D, min.	34 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,3738 kg CO₂e / 1 Piece
Dimension	34-40mm

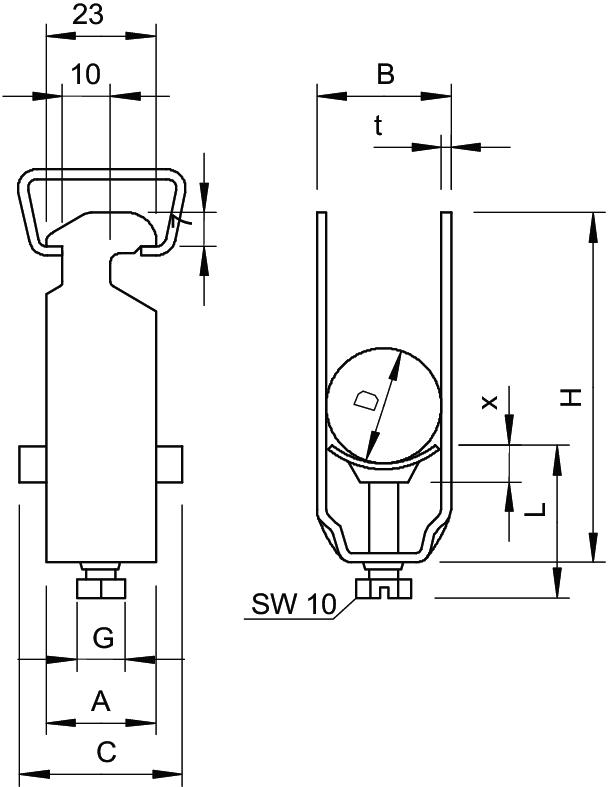

Dimension A	23 mm
Dimension B	45 mm
Dimension C	34 mm
Dimension G (mm)	M8
Dimension H	72 mm
Dimension L	37,5 mm
Dimension t	2 mm
Dimension x	5,5 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm

Halogen-free	yes
Impact-resistant	no
Material	Aluminium
Material addition	Aluminium
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	2 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface addition	Untreated
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056 12 ALU	8 mm	12 mm	2 Nm	1183206	piece	100 piece
2056 16 ALU	12 mm	16 mm	2 Nm	1183214	piece	100 piece
2056 22 ALU	16 mm	22 mm	2 Nm	1183222	piece	100 piece
2056 28 ALU	22 mm	28 mm	2 Nm	1183230	piece	100 piece
2056 34 ALU	28 mm	34 mm	2 Nm	1183249	piece	100 piece
2056 40 ALU	34 mm	40 mm	2 Nm	1183257	piece	100 piece
2056 46 ALU	40 mm	46 mm	2 Nm	1183265	piece	100 piece
2056 52 ALU	46 mm	52 mm	2 Nm	1183273	piece	100 piece
2056 58 ALU	52 mm	58 mm	2 Nm	1183281	piece	50 piece
2056 64 ALU	58 mm	64 mm	2 Nm	1183303	piece	50 piece
2056 70 ALU	64 mm	70 mm	2 Nm	1183311	piece	50 piece
2056 76 ALU	70 mm	76 mm	2 Nm	1183338	piece	25 piece
