Note: This article is discontinued.

Clamp clip for screen connection 8 | 12 | 3

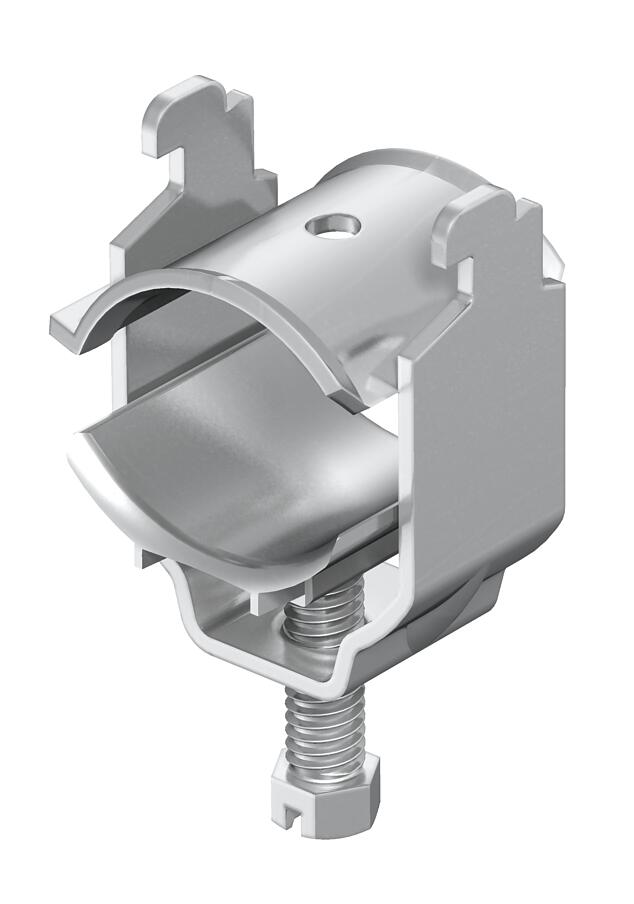

Clamp clip for screen connection

Item no. 1167014 | EAN 4012195432432

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	3 Nm

Product description

Product description

For electrical connection of the braided shield of stripped cables.
Delivery complete with counter-trough; pressure trough and VA counter-trough.
A cable screen for protection against electromagnetic influences, can also contribute towards equipotential bonding as both ends are connected to the reference potential.

Technical data

Technical data

Clamping range D, max.	12 mm
Clamping range D, min.	8 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,1991 kg CO₂e / 1 Piece

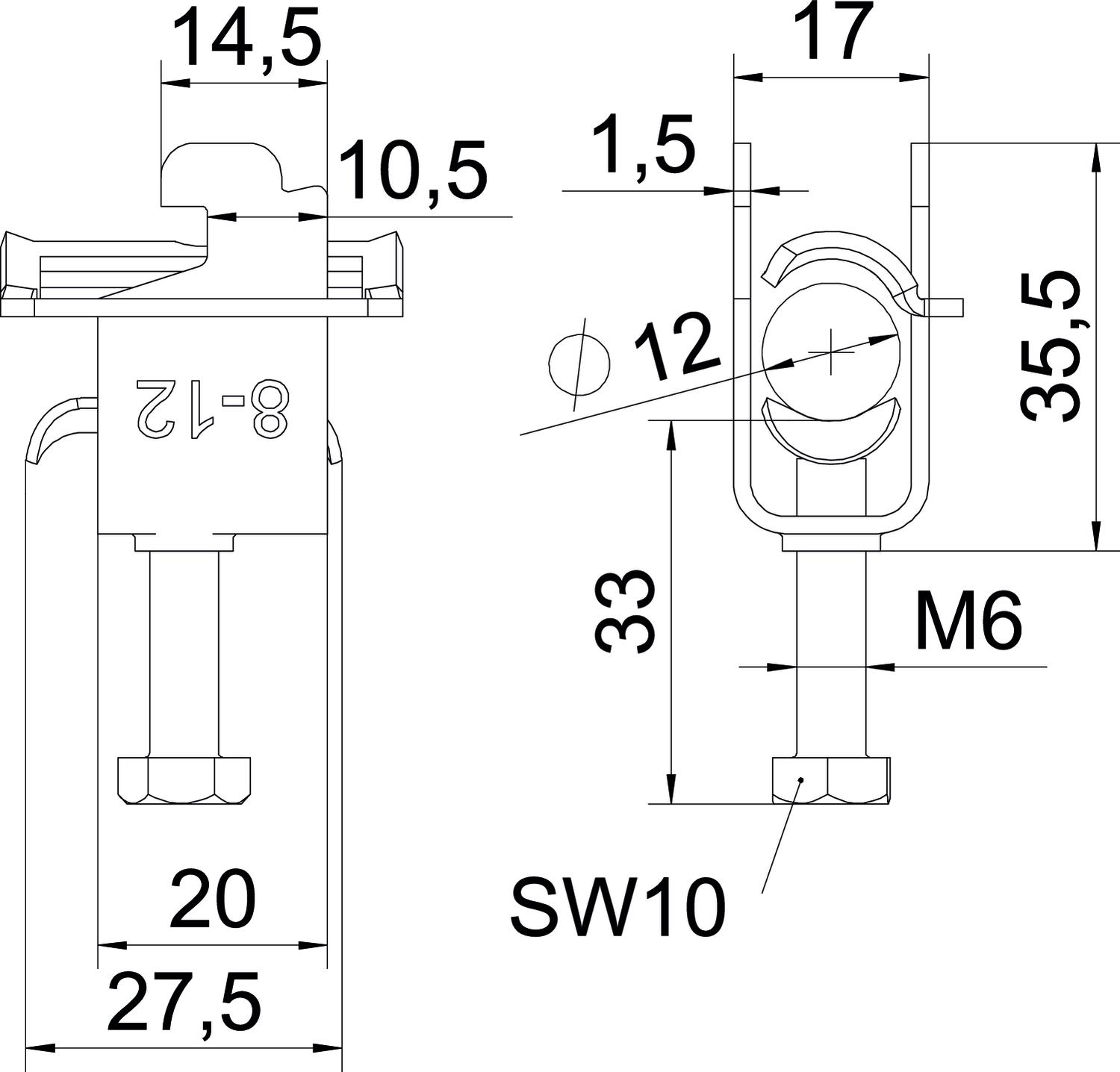

Dimension	8-12mm
Dimension A	20 mm
Dimension B	16 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	34 mm
Dimension L	34 mm
Dimension t	1,5 mm
for rail with slot width (with interval), max.	12 mm
for rail with slot width (with interval), min.	11 mm
Halogen-free	yes
Height	35,5 mm
Impact-resistant	no

Length	20 mm
Material	Stainless steel 1.4301
Material addition	Rustproof steel
Material of counter-trough	Rustproof steel
Material of trough	Rustproof steel
Material quality of trough	Stainless steel 304 (1.4301)
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Bright, treated
Surface addition	Untreated
Width	17 mm
With counter-trough	yes
With metal trough	yes
With plastic trough	no
