Note: This article is discontinued.
You can find the current article here: 1186223 / Clamp clip 2056 H-foot, 2-fold, plastic pressure sleeve, FT

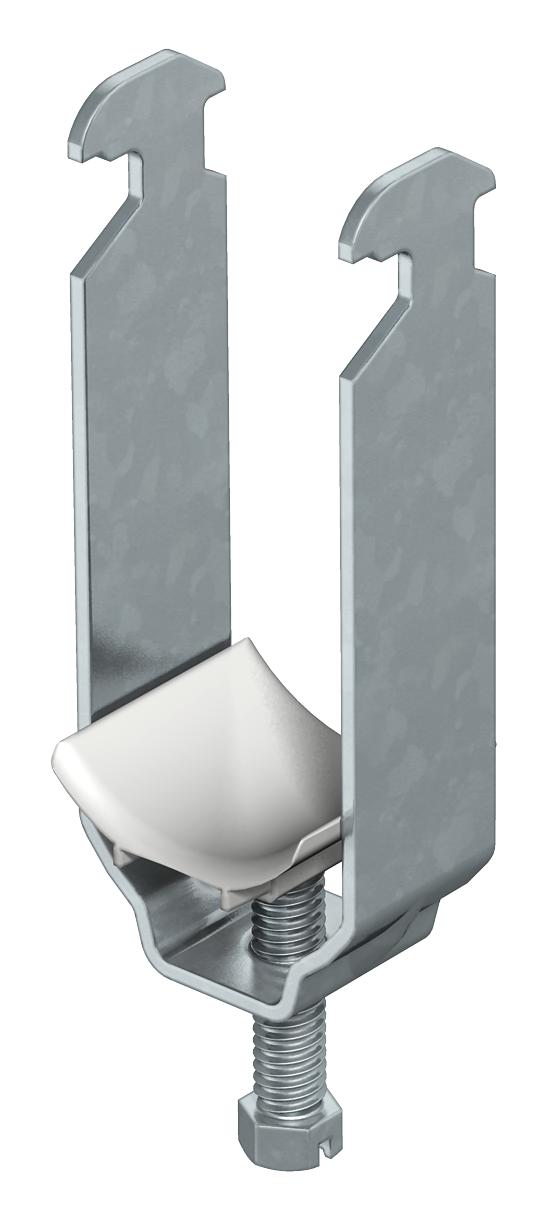

Clamp clip, double, FT plastic pressure trough
Item no. 1161288 | EAN 4012195065531
- Product description
-
Product descriptionSuitable for all C profile rails with slot width 16–17 mm.
Hot-dip galvanised steel clamp and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
-
- Technical data
-
Technical data

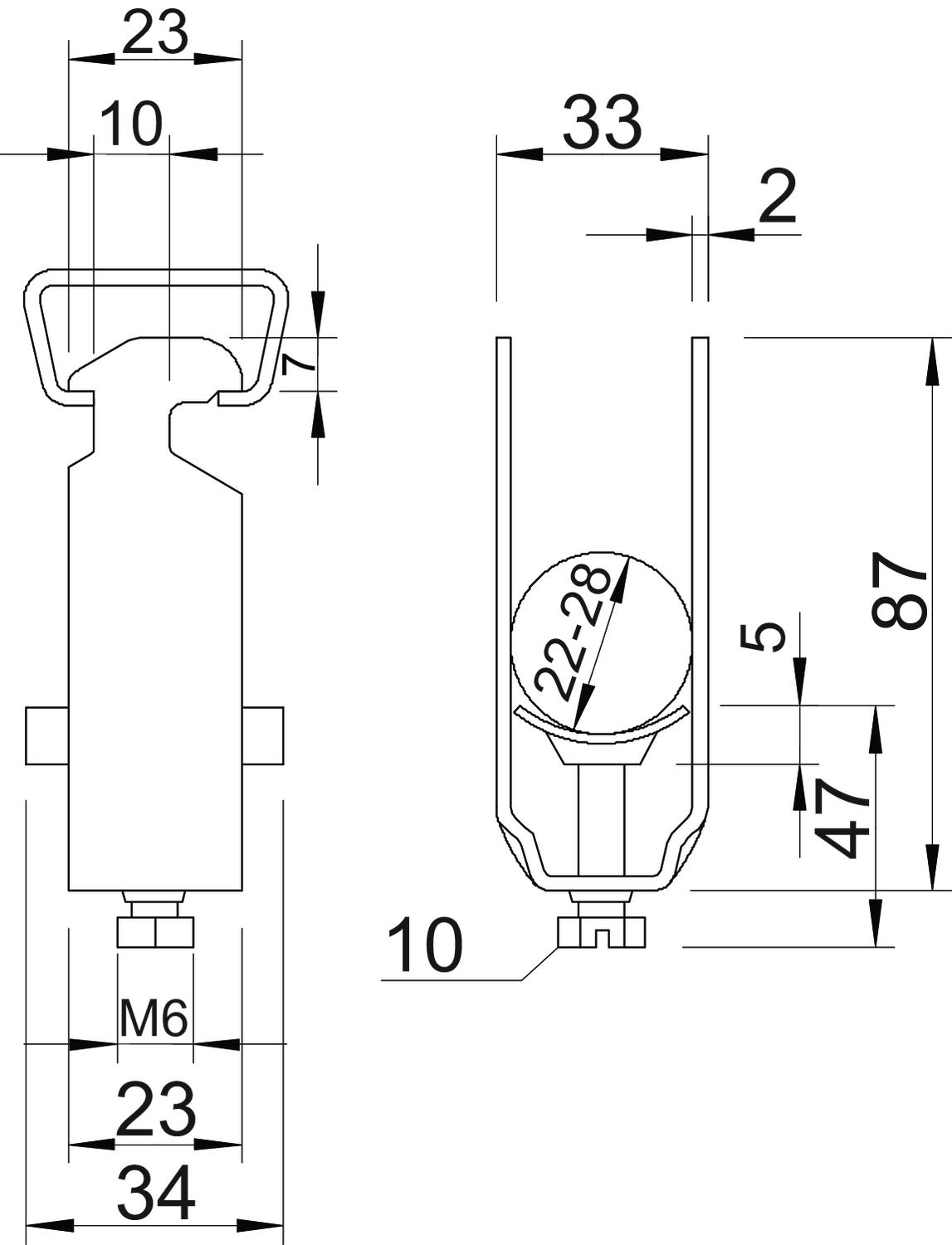

Clamping range D, max. 28 mm Clamping range D, min. 22 mm CO2 Footprint (GWP) Cradle-to-Gate 0,1514 kg CO₂e / 1 Piece Dimension 22-28mm Dimension A 23 mm Dimension B 33 mm Dimension C 34 mm Dimension G (mm) M6 Dimension H 87 mm Dimension L 47 mm Dimension t 2 mm Dimension x 5 mm for rail with slot width (with interval), max. 17 mm for rail with slot width (with interval), min. 16 mm Halogen-free yes Impact-resistant no Material Steel Material addition Steel Material of trough Plastic Material quality of trough Polypropylene Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 2 Surface Hot-dip galvanised Surface addition hot galvanised With counter-trough no With metal trough no With plastic trough yes - All types
-
All types
- Downloads
-
Data sheet 2056 2 28 FT / 1161288 , 0.18MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity 2056 2 28 FT / 1161288 , 0.10MB , pdfREACH Declaration of conformity 2056 2 28 FT / 1161288 , 0.12MB , pdfRoHS Declaration of conformity 2056 2 28 FT / 1161288 , 0.12MB , pdf
