Clamp clip 2056, U-foot, single, metal pressure trough, A2 28 | 34 | 3

Clamp clip 2056, U-foot, single, metal pressure trough, A2

Item no. 1188413 | EAN 4012197417406

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

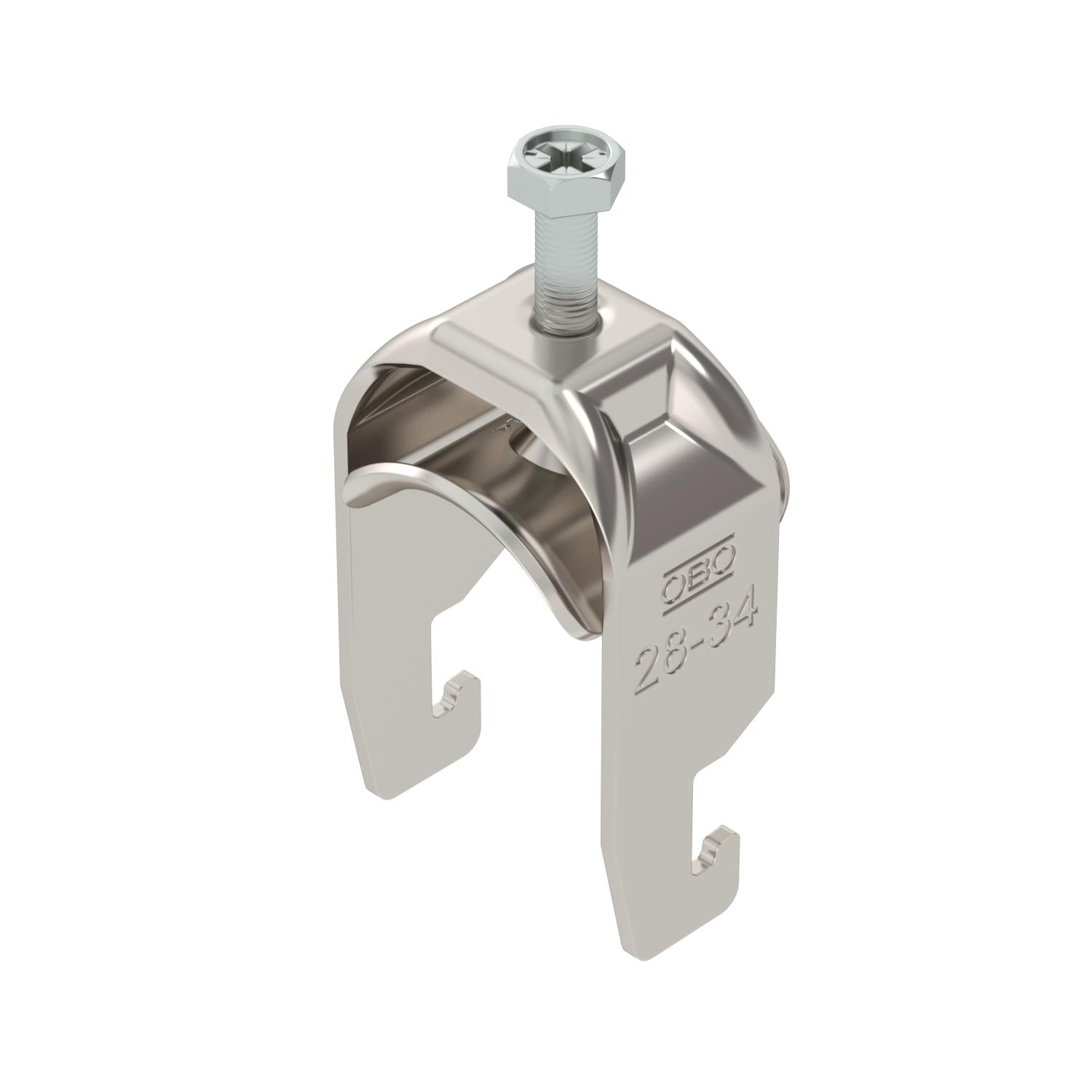

Clamp clip with U-foot, metal pressure trough with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure trough, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. We recommend the use of a counter-trough.

Technical data

Technical data

Clamping range D, max.	34 mm
Clamping range D, min.	28 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,4026 kg CO2e / 1 Piece

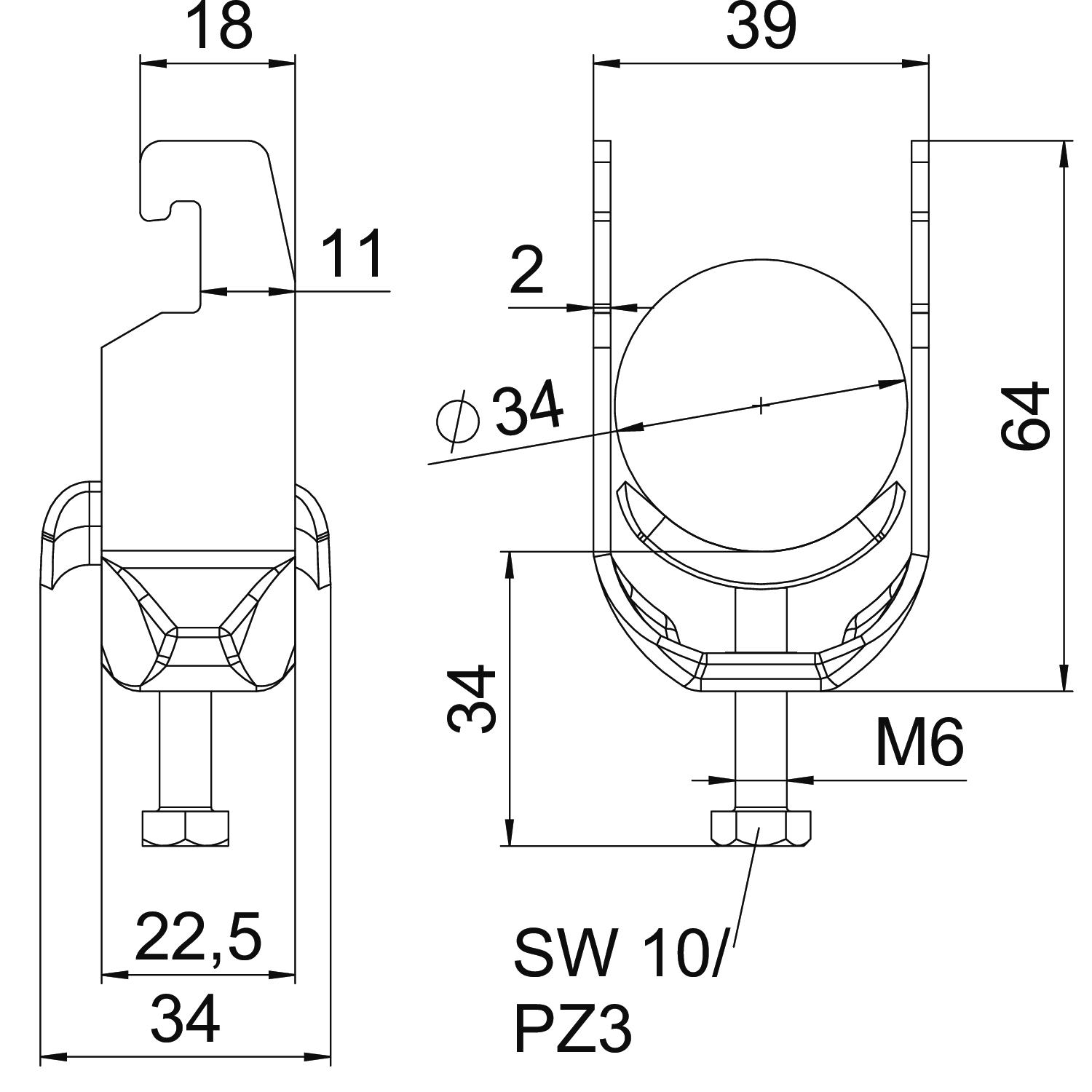

Dimension	28-34mm
Dimension A	22,5 mm
Dimension B	39 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	64 mm
Dimension L	34 mm
Dimension t	2 mm
For pipe diameter, max.	34 mm
For pipe diameter, min.	28 mm
for rail with slot width (with interval), max.	22 mm
for rail with slot width (with interval), min.	18 mm
Halogen-free	yes

Height	64 mm
Length	22,5 mm
Length of external dimensions	34 mm
Material	Stainless steel 1.4301
Material addition	Rustproof steel
Max. Tightening torque	3 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M6
Width	39 mm
With metal trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-U1-M-12 A2	8 mm	12 mm	3 Nm	1188401	piece	100 piece
BS-U1-M-16 A2	12 mm	16 mm	3 Nm	1188404	piece	100 piece
BS-U1-M-22 A2	16 mm	22 mm	3 Nm	1188407	piece	100 piece
BS-U1-M-28 A2	22 mm	28 mm	3 Nm	1188410	piece	100 piece
BS-U1-M-34 A2	28 mm	34 mm	3 Nm	1188413	piece	100 piece
BS-U1-M-40 A2	34 mm	40 mm	3 Nm	1188416	piece	100 piece
BS-U1-M-46 A2	40 mm	46 mm	5 Nm	1188419	piece	100 piece
BS-U1-M-52 A2	46 mm	52 mm	5 Nm	1188422	piece	100 piece
BS-U1-M-58 A2	52 mm	58 mm	5 Nm	1188425	piece	100 piece
BS-U1-M-64 A2	58 mm	64 mm	5 Nm	1188428	piece	100 piece
BS-U1-M-70 A2	64 mm	70 mm	5 Nm	1188431	piece	50 piece
BS-U1-M-76 A2	70 mm	76 mm	5 Nm	1188434	piece	25 piece
