Clamp clip 2056, F-foot, single, plastic pressure trough, ALU 46 | 52 | 5

Clamp clip 2056, F-foot, single, plastic pressure trough, ALU

Item no. 1188252 | EAN 4012197416652

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

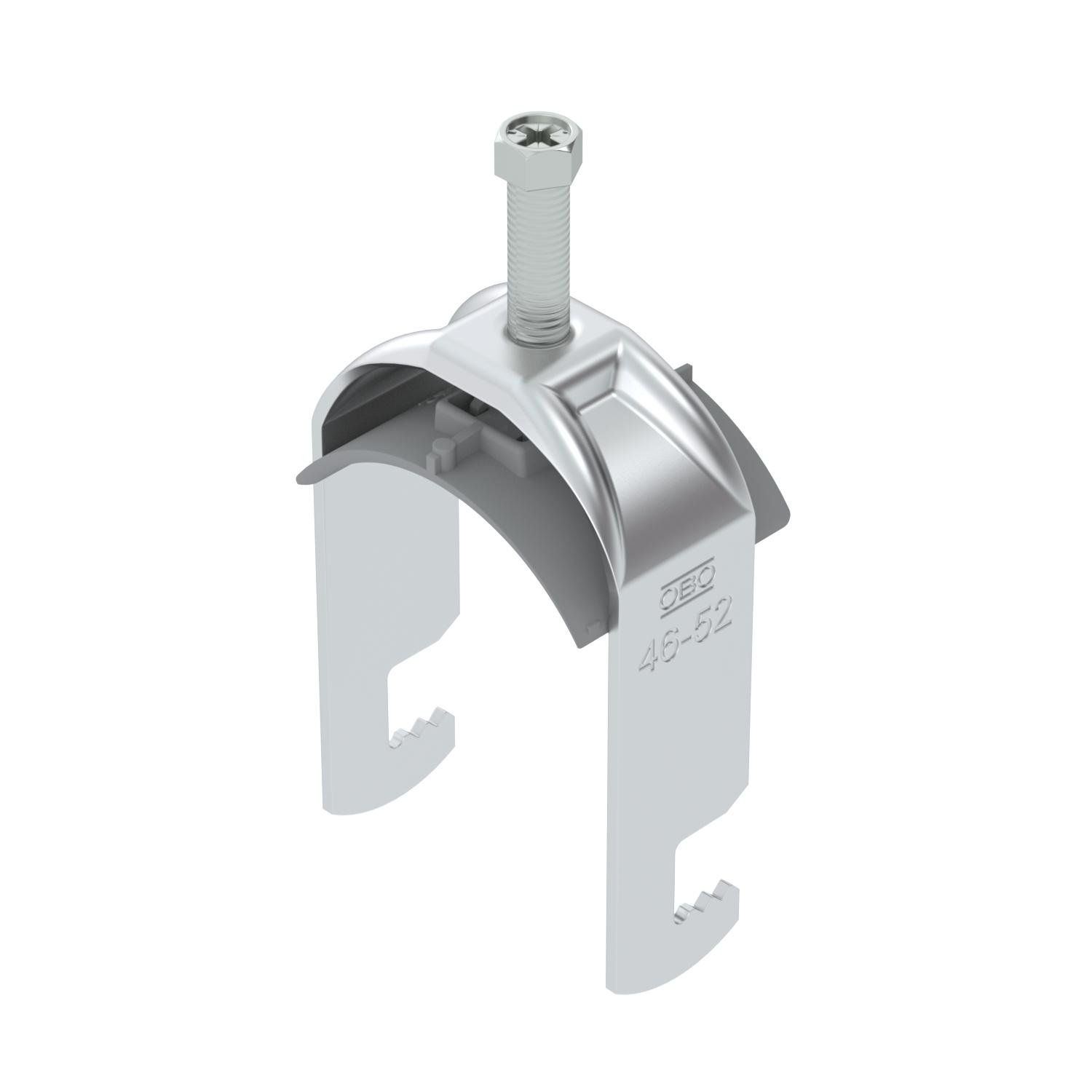

Clamp clip with F-foot, plastic pressure trough made of polypropylene. For vertical and horizontal mounting of 1 single cable on flat bars. With 1-start screw thread on pressure trough, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. We recommend the use of a counter-trough.

Technical data

Technical data

Clamping range D, max.	52 mm
Clamping range D, min.	46 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,4838 kg CO2e / 1 Piece

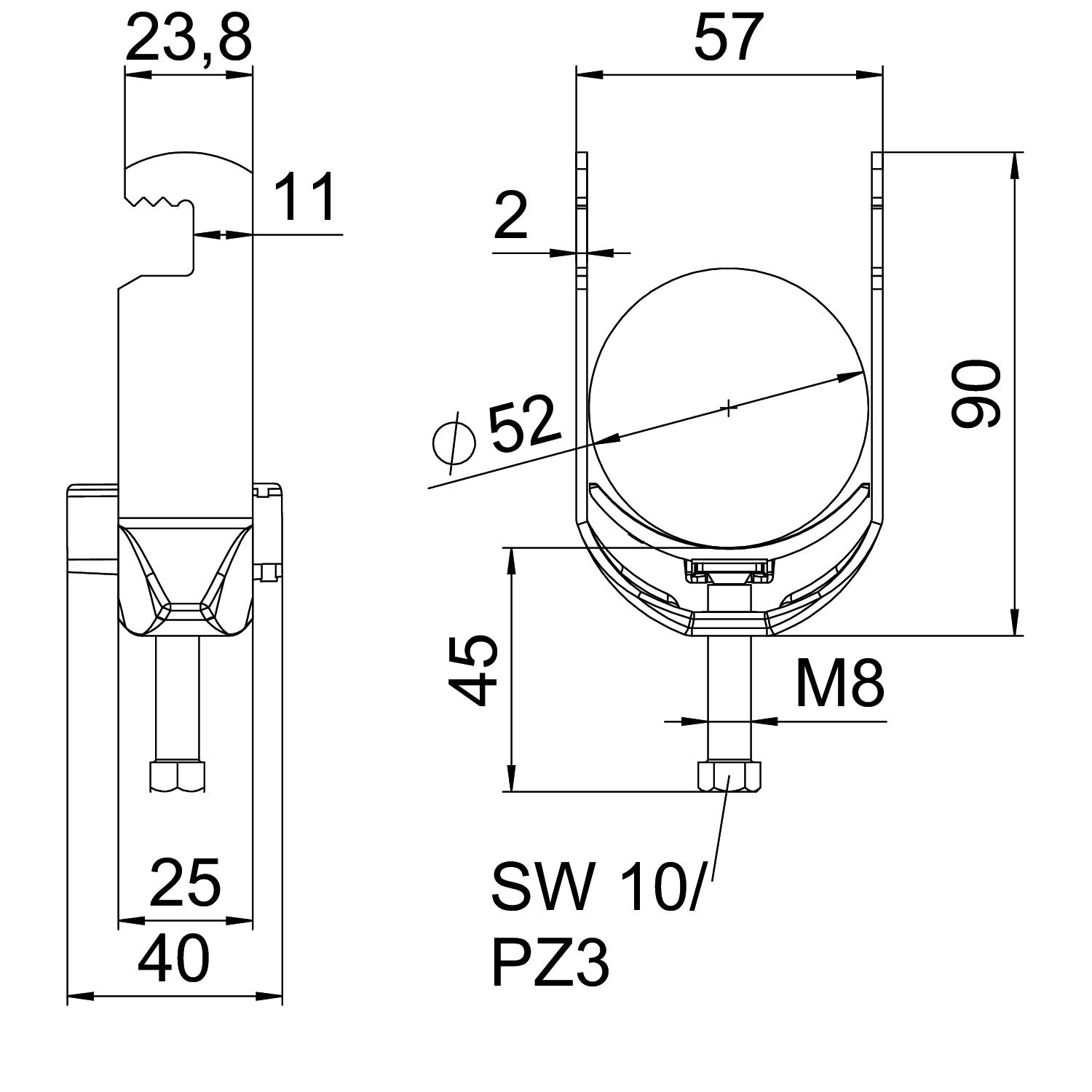

Dimension	46-52mm
Dimension A	25 mm
Dimension B	57 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	90 mm
Dimension L	45 mm
Dimension t	2 mm
For pipe diameter, max.	52 mm
For pipe diameter, min.	46 mm
Halogen-free	yes

Height	90 mm
Length	25 mm
Length of external dimensions	40 mm
Material	Aluminium
Material addition	Aluminium
Max. Tightening torque	5 Nm
Mounting type	Flat profile
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface addition	Untreated
Thread	M8
Width	57 mm
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-F1-K-12 ALU	8 mm	12 mm	3 Nm	1188231	piece	100 piece
BS-F1-K-16 ALU	12 mm	16 mm	3 Nm	1188234	piece	100 piece
BS-F1-K-22 ALU	16 mm	22 mm	3 Nm	1188237	piece	100 piece
BS-F1-K-28 ALU	22 mm	28 mm	3 Nm	1188240	piece	100 piece
BS-F1-K-34 ALU	28 mm	34 mm	3 Nm	1188243	piece	100 piece
BS-F1-K-40 ALU	34 mm	40 mm	3 Nm	1188246	piece	100 piece
BS-F1-K-46 ALU	40 mm	46 mm	5 Nm	1188249	piece	100 piece
BS-F1-K-52 ALU	46 mm	52 mm	5 Nm	1188252	piece	100 piece
