Clamp clip 2056, F-foot, single, plastic pressure trough, A2 22 | 28 | 3

Clamp clip 2056, F-foot, single, plastic pressure trough, A2

Item no. 1188270 | EAN 4012197416355

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque	3 Nm

Product description

Product description

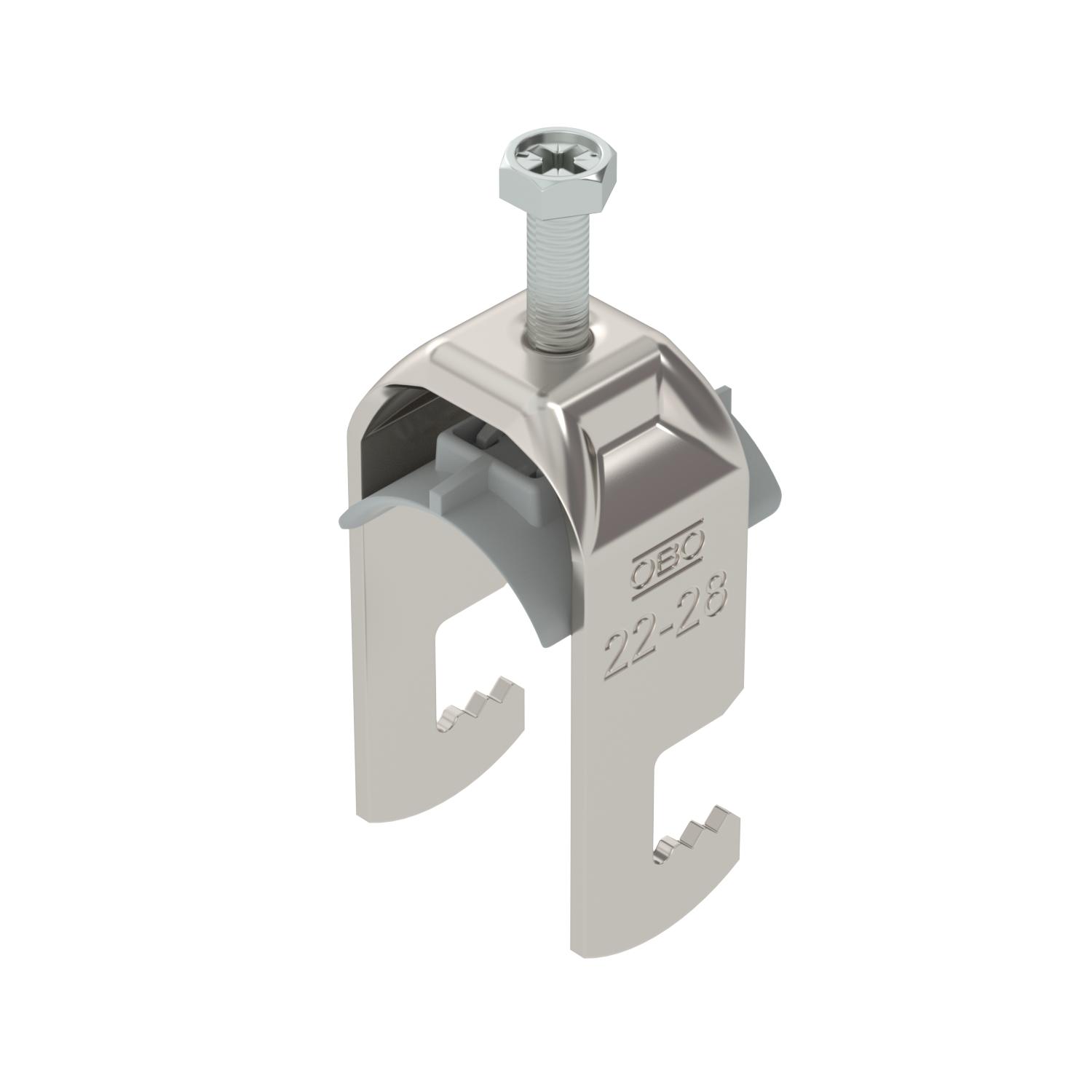

Clamp clip with F-foot, plastic pressure trough made of polypropylene. For vertical and horizontal mounting of 1 single cable on flat bars. With 1-start screw thread on pressure trough, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for mounting indoors and outdoors. We recommend the use of a counter-trough.

Technical data

Technical data

Clamping range D, max.	28 mm
Clamping range D, min.	22 mm
CO2 Footprint (GWP) Cradle-to-Gate	0,4117 kg CO2e / 1 Piece

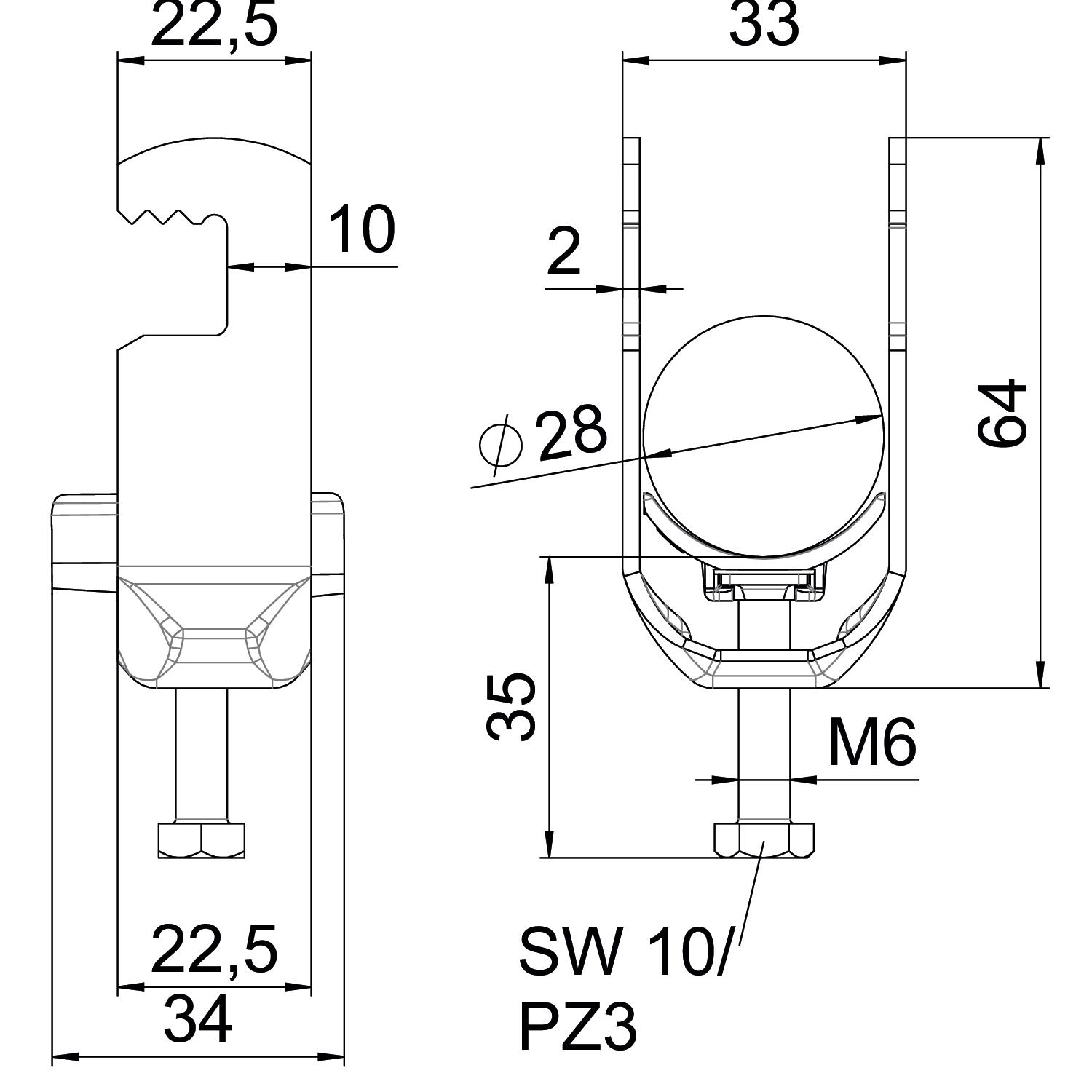

Dimension	22-28mm
Dimension A	22,5 mm
Dimension B	33 mm
Dimension C	34 mm
Dimension G (mm)	M6
Dimension H	64 mm
Dimension L	35 mm
Dimension t	2 mm
For pipe diameter, max.	28 mm
For pipe diameter, min.	22 mm
Halogen-free	yes
Height	64 mm

Length	22,5 mm
Length of external dimensions	34 mm
Material	Stainless steel 1.4301
Material addition	Rustproof steel
Max. Tightening torque	3 Nm
Mounting type	Flat profile
Number of cables/pipes	1
Plate thickness	2 mm
Slot width	10 mm
Surface	Bright, treated
Surface addition	Untreated
Thread	M6
Width	33 mm
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-F1-K-12 A2	8 mm	12 mm	3 Nm	1188261	piece	100 piece
BS-F1-K-16 A2	12 mm	16 mm	3 Nm	1188264	piece	100 piece
BS-F1-K-22 A2	16 mm	22 mm	3 Nm	1188267	piece	100 piece
BS-F1-K-28 A2	22 mm	28 mm	3 Nm	1188270	piece	100 piece
BS-F1-K-34 A2	28 mm	34 mm	3 Nm	1188273	piece	100 piece
BS-F1-K-40 A2	34 mm	40 mm	3 Nm	1188276	piece	100 piece
