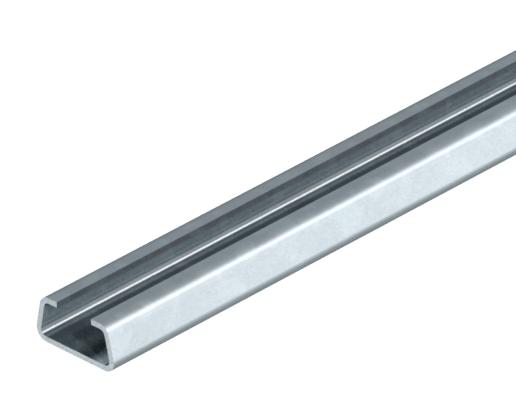

CL2512 profile rail, 11 mm slot, FS, unperforated

Item no. 1117033 | EAN 4012195046578

Item no. / Types	1117033 / AL2512UP2000FS

Length	2000 mm

Width	25 mm

Height	12 mm

Material thickness	1.5 mm

Material	Steel

Surface	Strip galvanized

Product description

Product description

Light-duty C profile rail for cable routing, in conjunction with series clips or clamp clips with N foot. Can also be used in building of control cabinets.

Technical data

Technical data

Bundle	20 m
CO2 Footprint (GWP) Cradle-to-Gate	1,304 kg CO2e / 1 Meter

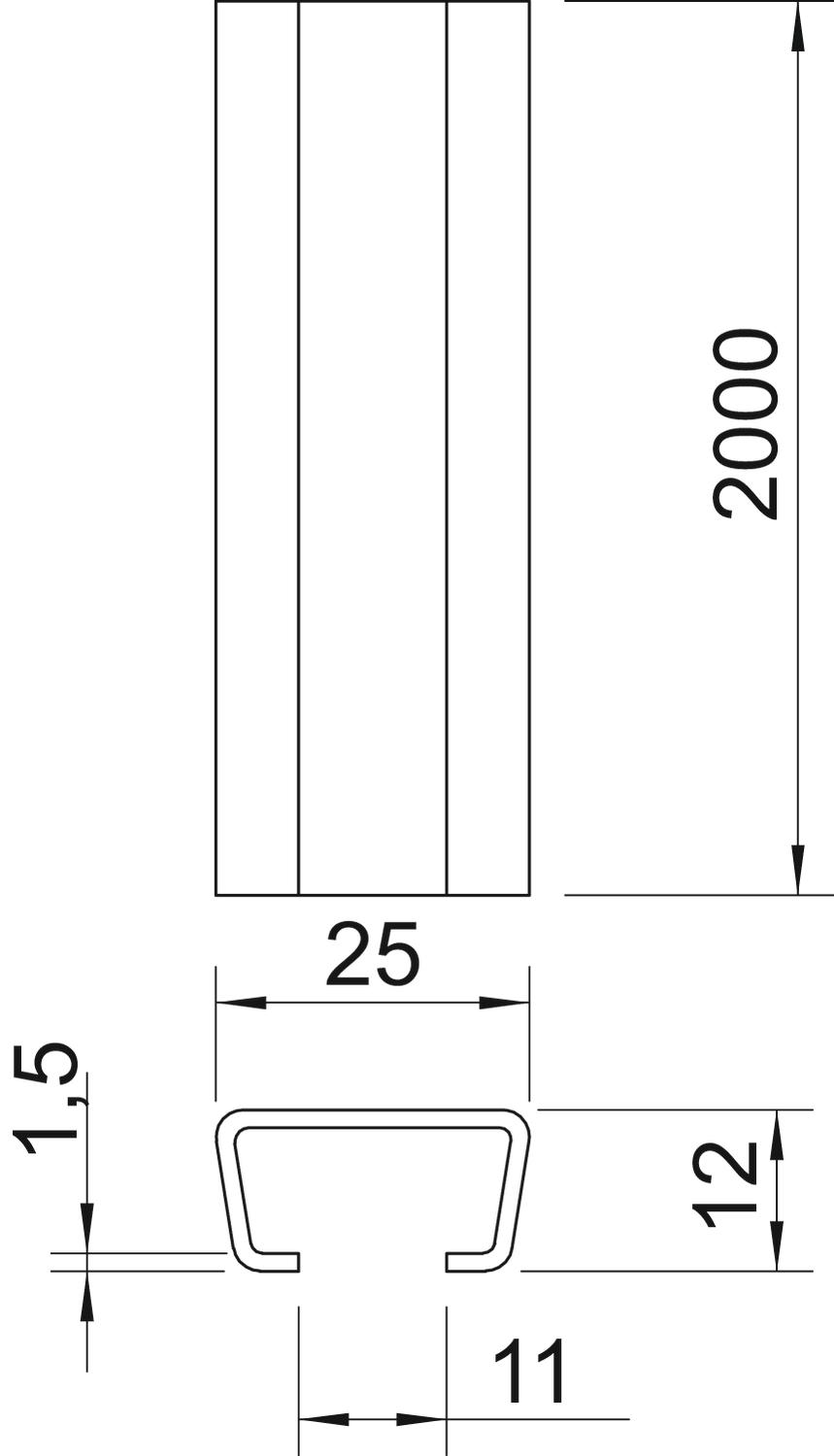

Dimension	2000x25x12
Dimension L	2000 mm
Height	12 mm
Length	2000 mm
Material	Steel
Material thickness	1,5 mm
Profile shape	C profile
Slot width	11 mm
Static value A	0,77 cm²

Static value ly	0,14 cm⁴
Static value lz	0,59 cm⁴
Static value Wy	0,19 cm³
Static value Wz	0,47 cm³
Surface	Strip galvanized
Type of perforation	Without
Version for	Single profile
Width	25 mm
With perforation	no
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Material	Surface	Item no.	Quantity	SSU
AL2512UP2000FS	2000 mm	25 mm	12 mm	1.5 mm	Steel	Strip galvanized	1117033	m	2 m

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU

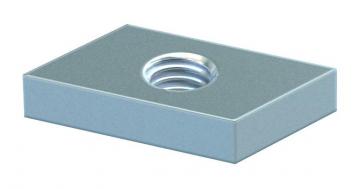

Slide nut	CL20SN M6 ZL	1147016	piece	100 piece

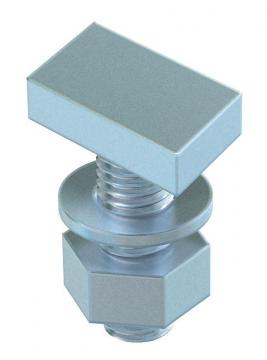

Hammer-head bolt	CL20HB M6x25 ZL	1148012	piece	50 piece

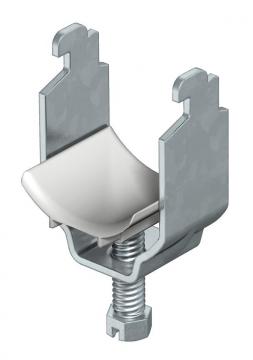

Clamp clip, single, plastic pressure trough, FT	2056N 12 FT	1163124	piece	100 piece
Clamp clip, single, plastic pressure trough, FT	2056N 22 FT	1163221	piece	100 piece
Clamp clip, single, plastic pressure trough, FT	2056N 28 FT	1163280	piece	100 piece
