Add-on tee 85 FT
Item no. 7122500 | EAN 4012196246793
- Product description
-

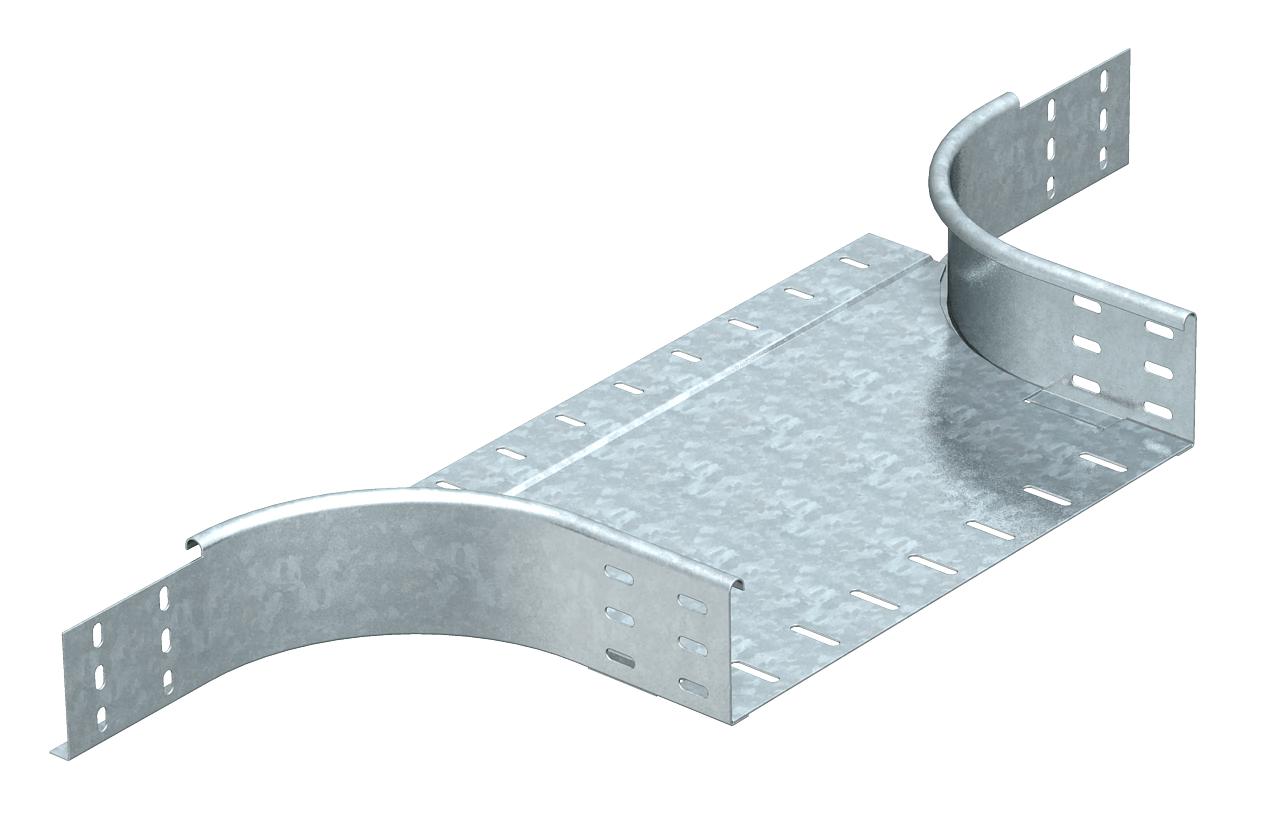

Product descriptionAdd-on tee for horizontal and vertical use. For all cable tray types of 85 mm side height.
Fitting in round design. The interior radius of the fitting is 150 mm. Fastening materials should be ordered separately.
-
- Technical data
-
Technical data

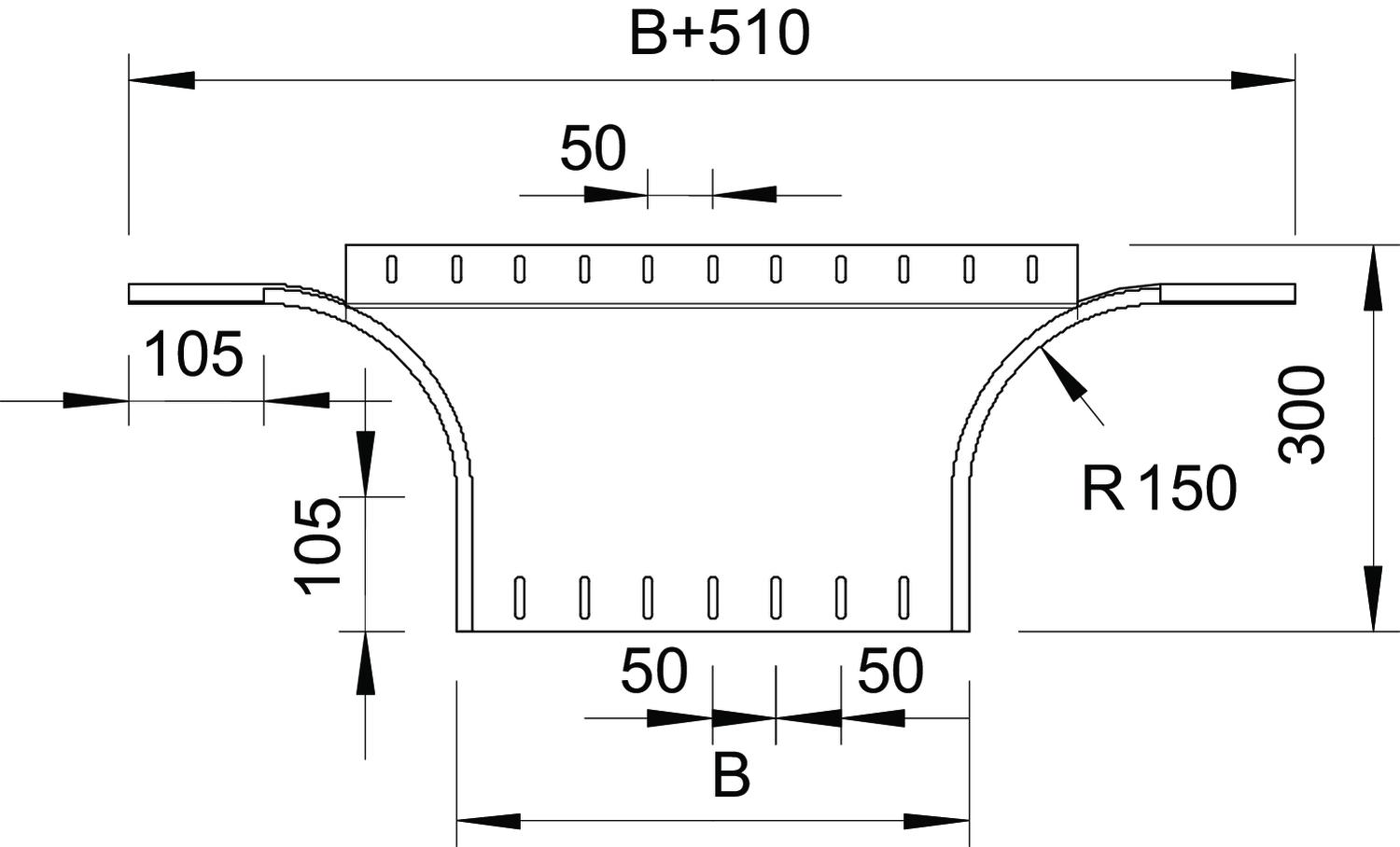

Bend (angle) 90° Change of direction Horizontal Connector version Without connectors Dimension 85x500 Dimension B 500 mm Dimension R 150 mm Height 3 in Height 85 mm Maintain electrical functions no Material Steel Material thickness, floor plate 1,5 mm NATO hole pattern no Rail thickness 1,25 mm Rustproof steel, pickled no Surface Hot-dip galvanised Type of connector, cable support system Screwed Wide-span version no Width 500 mm Width 20 in - All types
-
System accessories
Products Types Item no. Quantity SSU
Truss-head bolt with flange nut F
FRSB 6x12 F 6406122 100 piece - Downloads
-
Data sheet RAA 850 FT / 7122500 , 0.19MB , pdfEU declaration of conformity RAA 850 FT / 7122500 , 0.10MB , pdfREACH Declaration of conformity RAA 850 FT / 7122500 , 0.12MB , pdfRoHS Declaration of conformity RAA 850 FT / 7122500 , 0.12MB , pdfMounting instructions Mounting instructions Screw-on cable tray systems , 9.41MB , pdfMounting instructions General information on the mounting , 2.65MB , pdf
