UZD250-4 junction and branch box

项目编号 7410072 | EAN码 4012197478674

28 mm
58 mm
通用
250 mm
产品描述
产品描述

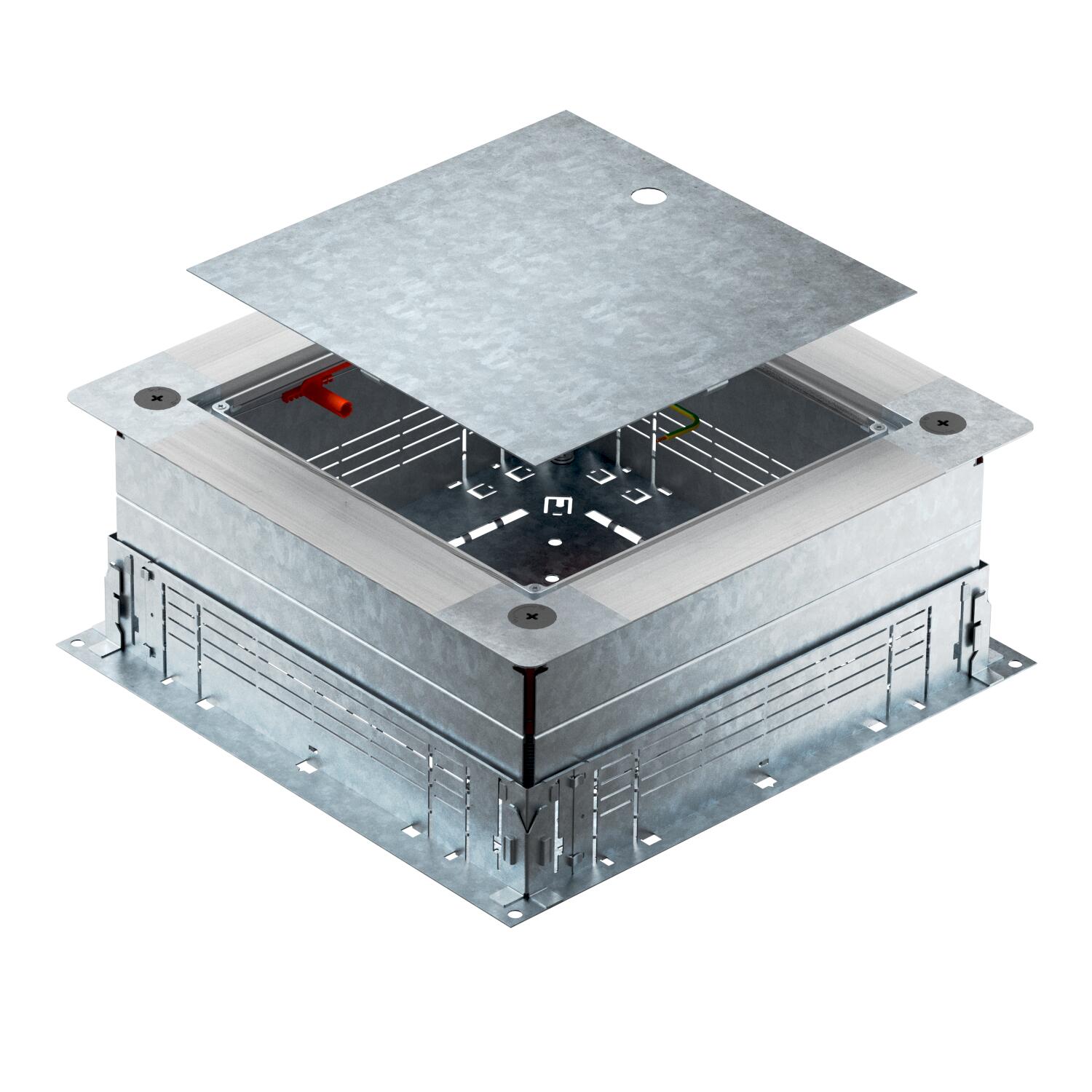

Junction and branch box for screed-covered underfloor installation duct with sheet steel side walls. For mounting of installation units in the mounting lid (to be ordered separately). Can be adjusted continuously to a nominal screed height of 160–205 mm using the quick height-adjustment unit. The screed can be worked up to be flush with the screed edge. With an acoustic decoupling option after screed laying, and with system accessories, it can be used for heavy-duty applications. Insertion of cables with the 2-part EÜK duct.
  • 电气、电子、信息技术注册协会,德国
  • 欧共体,根据欧共体指令的欧共体(EC)符合性声明
  • 气体/蓄能器操作的设定工具
技术资料

技术参数

可变形的
地面箱的安装开口
密封安装选项
尺寸 400x380x160
底部端板
最大找平层高度 205 mm
最大调平范围 205 mm
最大通道宽度 250 mm
最大通道高度 58 mm
最小找平层高度 80
最小找平层高度 160 mm
最小调平范围 160 mm
最小通道宽度 190 mm
最小通道高度 28 mm
材料
用于管道连接
盖板 通用
表面 带钢镀锌
适用于与地面齐平的封闭式地板下线槽
适用于地下线槽
适用于找平层覆盖的地板下线槽
额定尺寸 250 mm

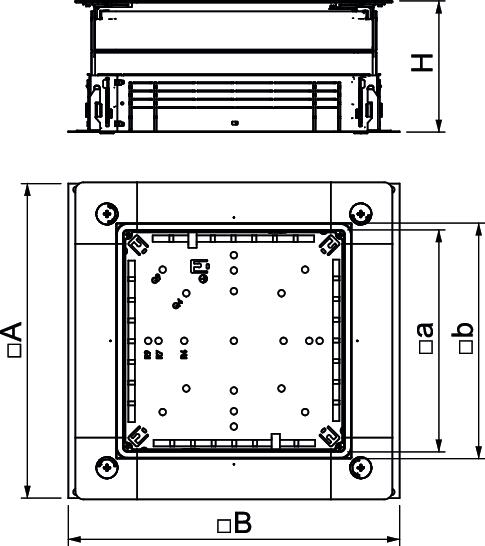

尺寸

宽度 400 mm
尺寸 A 380 mm
尺寸 a 262 mm
尺寸 b 283 mm
尺寸 B 400 mm
长度 380 mm
高度 160 mm
所有型号

所有型号

型号 最小找平层高度 最大找平层高度 最小通道高度 最大通道高度 盖板 额定尺寸 产品编码 数量
UZD250-4 80125 80 mm 125 mm 28 mm 58 mm 通用 250 mm 7410068
1 个
UZD250-4 120165 120 mm 165 mm 28 mm 58 mm 通用 250 mm 7410070
1 个
UZD250-4 160205 160 mm 205 mm 28 mm 58 mm 通用 250 mm 7410072
1 个
