Height-adjustable, decouplable cassette with cord outlet, stainless steel
项目编号 7409623 | EAN码 4012197438654
- 产品描述
-
产品描述Height-adjustable and decouplable square cassette for flush-floor and jointless device installation in underfloor connection sockets UZD 350-3 (minimum installation depth 151 mm)/UGD55 350-3 (minimum installation depth 136 mm). Suitable for all cement screeds. Cassette frame with integrated lined body and height-adjustment function. The height of the cassette frame is adjusted to the top edge of the floor covering using four slots. Suitable for dry-cleaned floors. The cassette is fixed in the mounting cover by fastening brackets during screed/Terrazzo work and is decoupled in all directions in the installed state. The cassette frame is made of stainless steel with a 25 mm-deep floor covering recess in the lid.

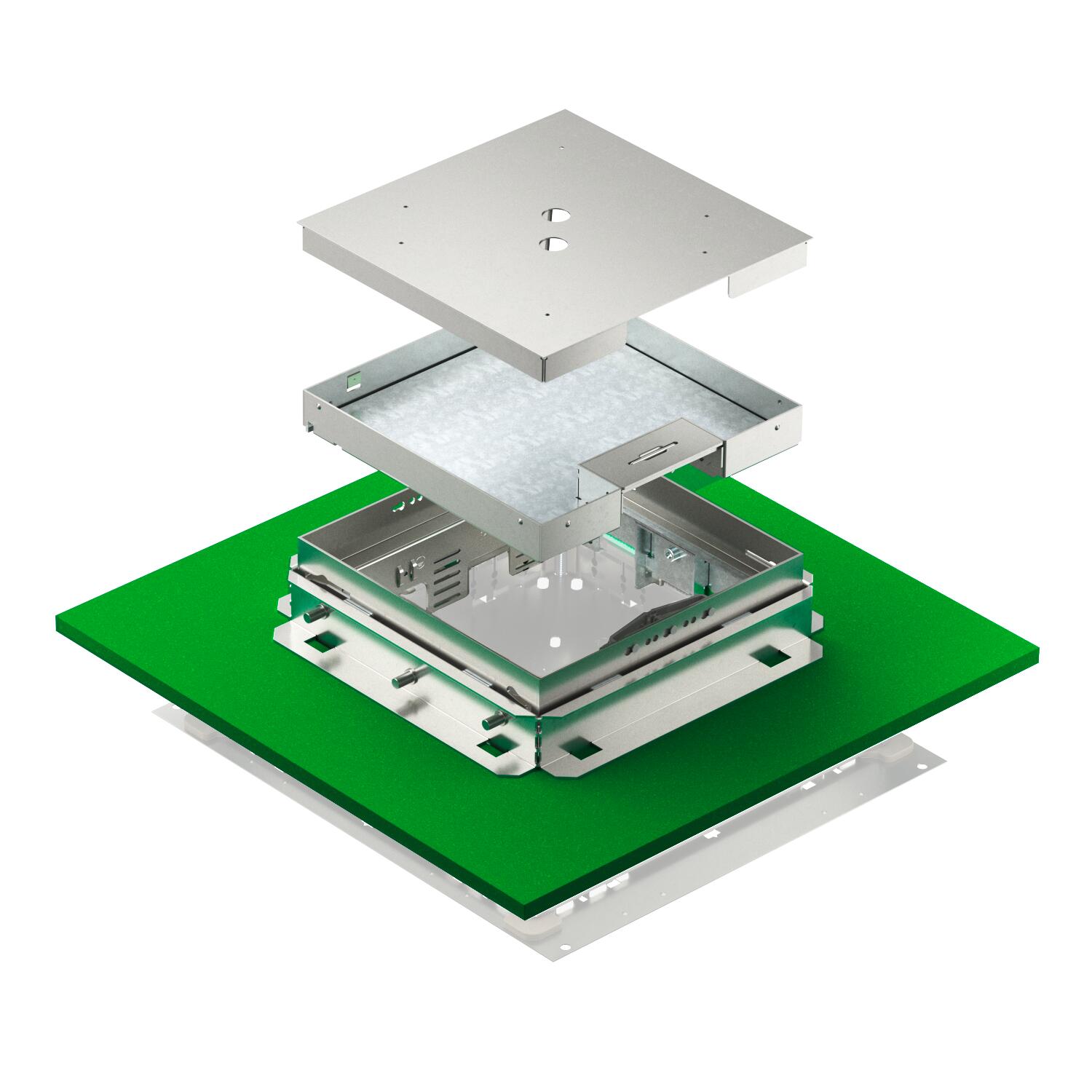

Height-adjustable cassette with cord outlet. For the installation of three UT4 universal supports for nine single devices with support ring/support clamp or 12 Modul 45® devices. The scope of delivery contains an aluminium screed protection cover (grindable), a suitable mounting lid to fix the cassette lined body and an ISO apron for decoupling from the underfloor connection socket.
-
- 技术资料
-
技术参数

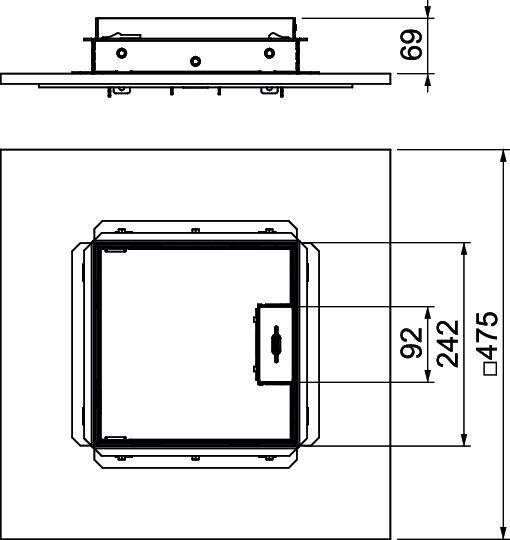

CO2 足迹 (GWP) 从摇篮到大门 50,409 kg CO2e / 1 件 使用时的防护等级（IP） IP20 可变形的 是 可安装设备数量 12 地板厚度 25 mm 地板护理 干燥 大面积垂直荷载 最大 5,000 N 安装深度 136 mm 安装系统类型 UT4 宽度 243 mm 小面积垂直荷载 最大 3,000 N 尺寸 243x243x117 尺寸 h 81 mm 支持安装盒的设备 否 最大找平层高度 110 mm 最大调平范围 110 mm 最小地板高度 136 mm 最小找平层高度 69 mm 最小调平范围 69 mm 未使用时的防护等级（IP） IP40 材料 优质不锈钢1.4301 标准 EN 50085-2-2 电缆插座 可旋转式电源插座 电缆插座数量 1 规格 正方形 认证 VDE 设备安装单元的标称尺寸 9 适用于中空地板安装 否 适用于架空地板安装 否 通用支架数量 3 x UT4 重型 否 长度 243 mm 防护等级 IK代码 IK10 高度 81 mm - 所有型号
