Height-adjustable, decouplable cassette for tube body, stainless steel
项目编号 7409497 | EAN码 4012197378387
- 产品描述
-
产品描述Height-adjustable and decouplable round cassettes are suitable for flushfloor device installation in UGD-3 underfloor connection boxes. Depending on the design, they are suitable for dry, moist or wet-cleaned floors. The cassette rests on the fixing bracket fastened in the top frame of the box, using which the cassette can be adjusted to the top edge of the floor covering. The fixing bracket decouples the cassette from the raw ceiling. The connection socket must have an appropriate installation opening and, for this reason, needs a blanking lid with an appropriate installation opening. The cassettes are made from stainless steel or brass. All the cassettes contain a 4 mm thick sheet steel plate, for safe absorption of the traffic loads. The cassettes are available for different floor covering thicknesses of 20 and 25 mm.

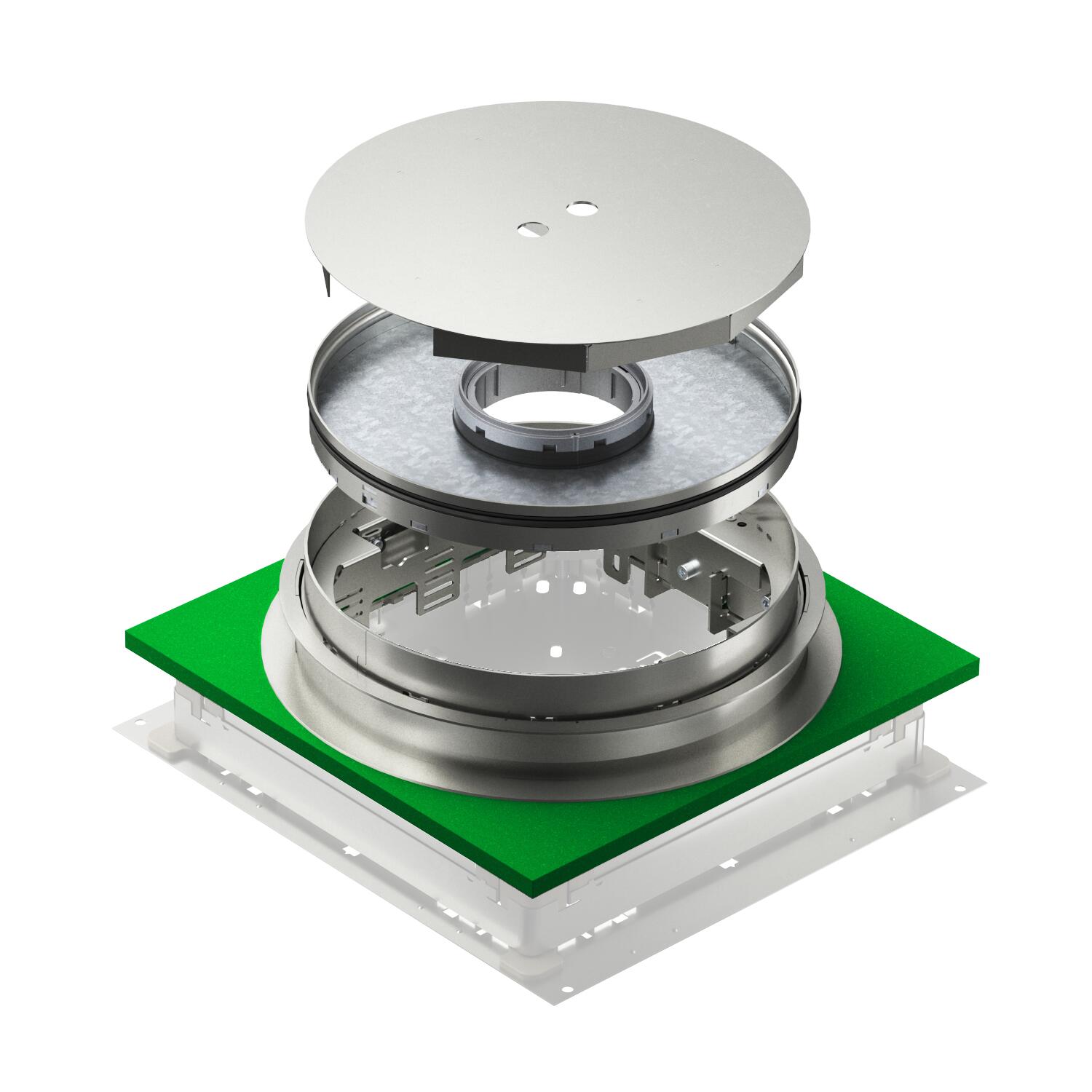

Height-adjustable cassette with tube body. For the installation of 3 universal supports UT4 for 9 single installation devices with support ring/support clamp or 12 Modul 45® devices. The delivery includes a screed protection lid made from aluminium (can be sanded), a matching mounting lid for fixing the cassette tube body and an ISO apron for the decoupling of the underfloor connection socket.
-
- 技术资料
-
技术参数

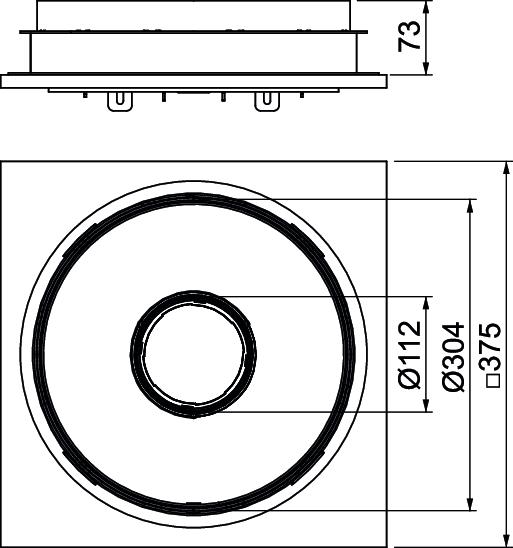

使用时的防护等级（IP） IP20 可变形的 是 可安装设备数量 12 地板厚度 25 mm 地板护理 潮湿 大面积垂直荷载 最大 5,000 N 安装深度 140 mm 安装系统类型 UT4 小面积垂直荷载 最大 3,000 N 尺寸 Ø304x85 支持安装盒的设备 否 最大找平层高度 113 mm 最大调平范围 113 mm 最小地板高度 140 mm 最小找平层高度 73 mm 最小调平范围 73 mm 未使用时的防护等级（IP） IP44 材料 优质不锈钢1.4301 标准 EN 50085-2-2 电缆插座 伸缩管 电缆插座数量 1 规格 圆形 认证 VDE 设备安装单元的标称尺寸 R9 适用于中空地板安装 否 适用于架空地板安装 否 通用支架数量 3 x UT4 重型 否 防护等级 IK代码 IK10 高度 85 mm - 所有型号
-
系统附件
产品 型号 产品编码 数量
带盖板的管体，带手柄，用于框架盒和高度可调的盒
TUK2 GV 7428140 1 个 - 下载
-
