Height-adjustable, decouplable cassette for tube body, stainless steel
项目编号 7409625 | EAN码 4012197438685
- 产品描述
-
产品描述Height-adjustable and decouplable square cassette for floor-flush and seamless device installation in underfloor connection boxes UZD 350-4 (minimum installation depth 161 mm)/UGD55 350-3 (minimum installation depth 136 mm). Suitable for all cement screeds. Cassette frame with integrated lined body and height-adjustment function. The height of the cassette frame is adjusted to the top edge of the floor covering using four slots. Suitable for dry-, moist- or wet-cleaned floors. The cassette is fixed in the mounting cover by fastening brackets during screed/Terrazzo work and is decoupled in all directions in the installed state. The cassette frame is made of stainless steel with a 25 mm-deep floor covering recess in the lid.

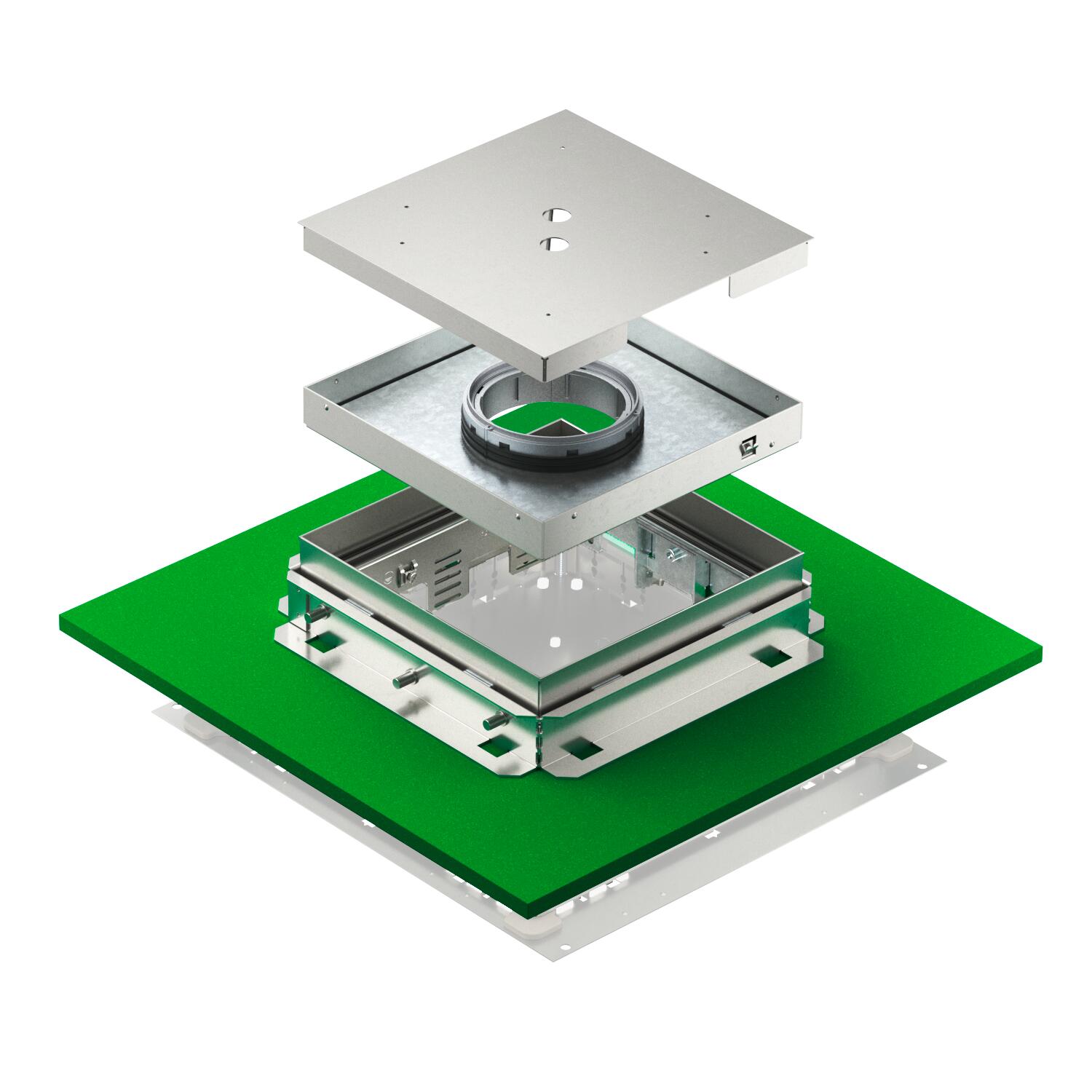

Height-adjustable cassette with tube body. For the installation of 3 universal supports UT4 for 9 single installation devices with support ring/support clamp or 12 Modul 45® devices. The delivery includes a screed protection lid made from aluminium (can be sanded), a matching mounting lid for fixing the cassette tube body and an ISO apron for the decoupling of the underfloor connection socket. The tube body is not included in the scope of delivery.
-
- 技术资料
-
二氧化碳足迹（Product Carbon Footprint）

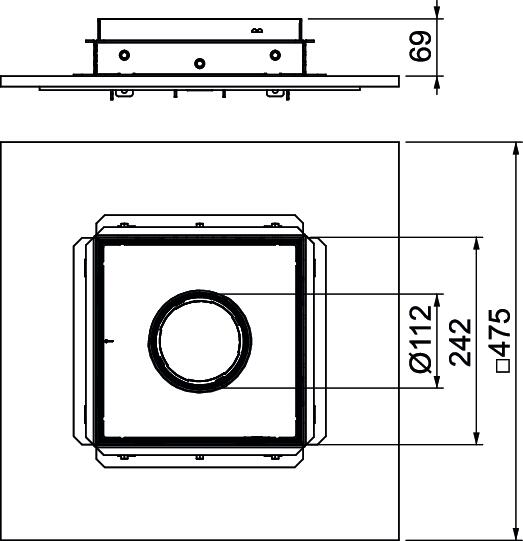

CO2 足迹 (GWP) 从摇篮到大门 51,324 kg CO2e / 1 件 使用时的防护等级（IP） IP20 可变形的 是 可安装设备数量 12 地板厚度 25 mm 地板护理 潮湿 大面积垂直荷载 最大 5,000 N 安装深度 136 mm 安装系统类型 UT4 宽度 243 mm 小面积垂直荷载 最大 3,000 N 尺寸 243x243x118 尺寸 h 81 mm 支持安装盒的设备 否 最大找平层高度 110 mm 最大调平范围 110 mm 最小地板高度 136 mm 最小找平层高度 69 mm 最小调平范围 69 mm 未使用时的防护等级（IP） IP55 材料 优质不锈钢1.4301 标准 EN 50085-2-2 电缆插座 伸缩管 电缆插座数量 1 规格 正方形 认证 VDE 设备安装单元的标称尺寸 9 适用于中空地板安装 否 适用于架空地板安装 否 通用支架数量 3 x UT4 重型 否 长度 243 mm 防护等级 IK代码 IK10 高度 81 mm - 所有型号
-
系统附件
产品 型号 产品编码 数量
带盖板的管体，带手柄，用于框架盒和高度可调的盒
TUK2 GV 7428140 1 个 - 下载
-
