Height-adjustable, decouplable cassette for inspection opening, stainless steel
项目编号 7409621 | EAN码 4012197438616
- 产品描述
-
产品描述Height-adjustable and decouplable square cassettes are suitable for flushfloor device installation in UGD-3 underfloor connection boxes. Depending on the design, they are suitable for dry, moist or wet-cleaned floors. The cassette rests on the fixing bracket fastened in the top frame of the box, using which the cassette can be adjusted to the top edge of the floor covering. The fixing bracket decouples the cassette from the raw ceiling. The connection socket must have an appropriate installation opening and, for this reason, needs a blanking lid with an appropriate installation opening. The cassettes are made from stainless steel or brass. All the cassettes contain a 4 mm thick sheet steel plate, for safe absorption of the traffic loads. Suitable cassettes are available for different floor covering thicknesses of 20 and 25 mm. Only suitable for smooth floor coverings.
Height-adjustable cassette with blanking cover. The scope of delivery contains an aluminium screed protection cover (grindable), a suitable mounting lid to fix the cassette lined body and an ISO apron for decoupling from the underfloor connection socket.
-
- 技术资料
-
技术参数

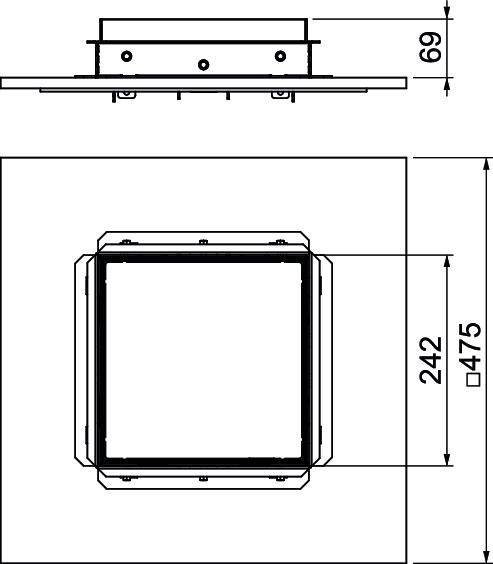

CO2 足迹 (GWP) 从摇篮到大门 49,4163 kg CO2e / 1 件 使用时的防护等级（IP） IP00 可变形的 是 地板厚度 25 mm 地板护理 潮湿 大面积垂直荷载 最大 5,000 N 安装深度 136 mm 安装系统类型 UT4 宽度 243 mm 小面积垂直荷载 最大 3,000 N 尺寸 243x243x118 尺寸 h 81 mm 支持安装盒的设备 否 最大找平层高度 110 mm 最大调平范围 110 mm 最小地板高度 136 mm 最小找平层高度 69 mm 最小调平范围 69 mm 未使用时的防护等级（IP） IP55 材料 优质不锈钢1.4301 标准 EN 50085-2-2 电缆插座 无出线口 规格 正方形 认证 VDE 设备安装单元的标称尺寸 9 适用于中空地板安装 否 适用于架空地板安装 否 重型 否 长度 243 mm 防护等级 IK代码 IK10 高度 81 mm - 所有型号
